Flow Switches |
| FSW300 Series |
|
 |
|
|
|
|
 |

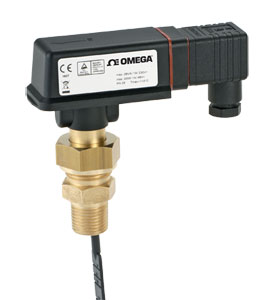

The FSW301 flow switch comprises a paddle system with a permanent
magnet attached. Above that magnet is a reed contact, located
outside the flow of fluid. A second magnet with opposing poles creates
the force necessary to reset the switch back to the no flow position.
When the monitored flow pushes the paddle and changes the position of
the magnet in relation to the reed contact it activates the contact. As
soon as the flow is interrupted, the paddle moves back to its starting
position, which returns the reed contact to the initial position. The force
necessary to push the magnet back is provided by the two magnets repelling
each other. Using magnetic force instead of the usual leaf spring means
the switch is considerably more stable in the long term and much less
sensitive to pressure peaks.
The reed contact used as a sensing element consists of two ferromagnetic
contact blades located in a glass bulb filled with inert gas. This practically
eliminates wear resulting from contact burning. This construction allows a
useful life of up to 100,000,000 switching cycles.
COMMON SPECIFICATIONS
Maximum Switching Current: 1 A
Maximum Switching Voltage: 230 Vac, 48 Vdc
Maximum Rating: 26 VA, 20 W
Set Point Tolerance: ±15%
Plug Connector: DIN 43650 form A/ISO 4400 cable socket with terminal screws, suitable for outer cable diameter 4.57 to 6.85 mm (0.18 to 0.27")
Dimensions (Excluding Paddle or Tee): 114 x 38 x 89 mm (4.5 x 1.5 x 3.5")
FSW301
Maximum Pressure: 25.165 bar (365 psi)
Maximum Process Temp: 110°C (230°F)
Maximum Ambient Temp: 80°C (176°F)
Protection Class: IP65
Connection: ½-14 NPT
Materials of Construction:
Body: Brass
Paddle System: Polypropylene, Noryl®
Shaft: Stainless steel
FSW302, 303, 304
Maximum Pressure: 25 bar (362 psi)
Maximum Process Temperature: 110°C (230°F)
Maximum Ambient Temperature: 80°C (176°F)
Materials of Construction:
Body: Brass
Pipe Section: Brass
Paddle System: Brass
FSW305, 306, 307
Maximum Pressure: 10 bar (145 psi)
Maximum Process Temperature: 60°C (140°F)
Maximum Ambient Temperature: 60°C (140°F)
Materials of Construction:
Pipe Section: PVC
Body: Polypropylene, Noryl®
Paddle System: Polypropylene, Noryl®
|
|
|
|
|
|
† Price are shown in RMB.
Note: Comes complete with operator’s manual.
Ordering Example: (1) 70A-2 fast pulse tone audible alarm, ¥372.00, plus (1) FSW301 insertion style flow switch with 1/2 NPT fitting, ¥2,370.00, ¥372.00 + 2,370.00 = $2,742.00
|
|
|
|
|
| |
|
