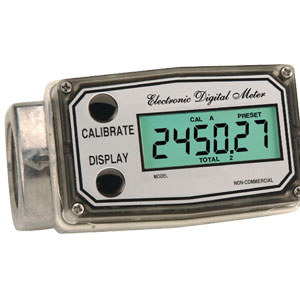

Turbine Flowmeters for Fuel

FTB380 Series

Click for larger image.

•	Indicates Both Rate and Total
•	Up to 1.5% Reading Accuracy
•	6-Digit Display
•	Signal Output Capabilities
•	Reads GPM or LPM (Field Selectable)
•	Battery Operated (Included)
View related products - Turbine, Paddle Wheel & Positive Displacement Flow Meters

FTB380 Series turbine meters with microprocessor-based electronics offers a durable, compact, highprecision fuel measurement device, with total and rate indication. Information is clearly displayed on a large 6-digit liquid crystal display with only 2-point floating decimal for totals from 0.01 to 999,999. All operations are easily performed with only 2 buttons.

The basic unit and display are powered by 2 lithium batteries, providing up to 4000 hours of use. Automatic "on" and "off" extend battery life. Manual "on" allows view of the display on demand. Cumulative total, batch total, and rate of flow are standard. A singlepoint field calibration curve can be stored in memory.

The turbine meter can also be ordered without display electronics. A special pulse output module (FLSC790-P-ND) must be ordered to obtain an open collector current sinking output operated on 9 to 35 Vdc. The output is a square wave pulse with a 3-wire connection.

Accessories for Turbine Meters with the Dislay
The FLSC790-BATT is the replacement battery for the display electronics. Batteries provide 4000 hours of use.

The FLSC790-90D is a 90° mounting adaptor designed to allow displays to be mounted 90°from the standard position.

SPECIFICATIONS
Accuracy:
    FTB381: ±5% rdg
    FTB383, FTB385: ±1.5% rdg
Repeatability:
    FTB381: ±1%
    FTB383, FTB385: ±0.2%
Pressure Rating: 300 psig (21 bar)
With Remote Electronics Kit: -40 to 121°C (-40 to 250°F)
Temperature Range (Without Remote Electronics): -10 to 60°C (14 to 140°F)
Viscosity: Rated accuracy for fuels or fluids With viscosity of (1 cSt); meters with display can be used for fluids up to 100 cSt with field calibration
Wetted Components:
    Housing: Aluminum
    Journal Bearings: Ceramic (96% alumina)
    Shaft: Tungsten carbide
    Rotor and Supports: Nylon
    Retaining Rings: 316 SS
Display: 6-digit LCD indicates flow rate, batch and cumulative total
Battery Life: 4000 hours
Note: Other outputs and accessories are not designed for hazardous environments

Order on www.omegaengineering.cn and 5% will be discounted when you checkout.

To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping

Part Number	Availability	Price(RMB)	Description	Qty.
A109GMA025NA1		Consult sales	1” FNPT, 0.3 to 3 GPM, Aluminum Flow Meter With Display	qty.

A1XXXXA025NB1	6 Weeks	¥2,100.00	1” FNPT, 0.3 to 3 GPM, Aluminum Flow Meter With No Display	qty.

A109GMA100NA1		Consult sales	1” FNPT, 3 to 50 GPM, Aluminum Flow Meter With Display	qty.

A1XXXXA100NB1	2 Weeks	¥2,125.00	1” FNPT, 3 to 50 GPM, Aluminum Flow Meter With No Display	qty.

A109GMA200NA2		Consult sales	2” FNPT, 30 to 300 GPM, Aluminum Flow Meter With Display	qty.

A1XXXXA200NB2	6 Weeks	¥8,975.00	2” FNPT, 30 to 300 GPM, Aluminum Flow Meter With No Display	qty.


Accessories

FLSC790-P-ND		Consult sales	Pulse output for models without displays "-ND" suffix); open collector output	qty.

FLSC790-BATT		Consult sales	Two 3V replacement batteries	qty.

FLSC790-90D		Consult sales	90º display mounting adaptor	qty.

† Price are shown in RMB.

Note: Comes complete with two 3V lithium batteries (already installed) and operator's manual.

Note: Other outputs and accessories are not designed for hazardous environments.

For 5-point NIST traceable certification, add suffix "-NIST" to the model number; add $375. to the price.
