Fuse Accessories
BM/R250/FP Series

Fuse Accessories
BM/R250/FP Series:Fuse Accessories

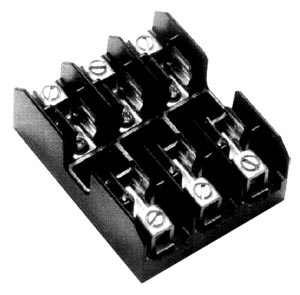

Click for larger image.

¥ 286.00  BM6033PQ
Click to scroll below to order See Specs PDF View a printer friendly page

BM Series fuse blocks are compatible with the Edison MCL, MEQ, MEN, and MOL and for use with any 13/32 x 1 1/2" fuses.
SPECIFICATIONS CLASS M SUPPLEMENTARY FUSEBLOCKS
Construction: Thermoplastic, UL flammability; 94 V
Ratings: 600 Vac, 30 A
Agency Approvals: UL Recognized, Guide IZLT2, File E14853; CSA, Class 6225-01, File 47235

The R250 Series fuse blocks are compatible with Class R fuses, such as: Edison LENRK and ECNR.

Construction: Thermoplastic, UL flammability; 94 V
Ampere Ratings: 1/10 to 600 A
Voltage Ratings: R250, 250 Vac
Agency Approvals: UL Listed, Guide IZLT, File E14853; CSA, Class 6225-01, File 47235

The FP-2 and FP-3 are tools to help easily remove fuses. FP-2 is for 13/32 to 13/16" diameter fuses. FP-3 is for 1 to 1 3/4" diameter fuses.
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 BM Series Fuse Blocks
 BM6031PQ 6 Weeks   ¥129.00    Fuse holder, 1 pole
 BM6032PQ 6 Weeks   ¥220.00    Fuse holder, 2 poles
 BM6033PQ 2 Weeks   ¥286.00    Fuse holder, 3 poles
 R250 Series Fuse Blocks
 R25030-1SR 101 Weeks   ¥153.00    1 Pole
 R25030-2SR 2 Weeks   ¥232.00    2 Poles
 R25030-3SR 101 Weeks   ¥348.00    3 Poles
 R25060-1CR 101 Weeks   ¥273.00    1 Poles
 R25060-2CR 101 Weeks   ¥505.00    2 Poles
 R25060-3CR 101 Weeks   ¥670.00    3 Poles
 FP Series Fuse Pullers
 FP-2 2 Weeks   ¥420.00    13/32 to 13/16", 0 to 60 A, 250 V and 0 to 30 A, 600 V
 FP-3 4 Weeks   ¥530.00    1 to 1 3/4", 70 to 200 A, 250 V and 35 to 200 A, 600 V
† Price are shown in RMB.

 Note: SR is a Screw type, clip with reinforced spring, CR is a Box lug type, clip with reinforced spring.
Comes with instruction sheet.
  Ordering Example: (1) BM6031PQ 1 pole fuse blocks, ¥129.00
