Medium Temperature Steam, Air and Gas Applications
GCHAI

Medium Temperature Steam, Air and Gas Applications

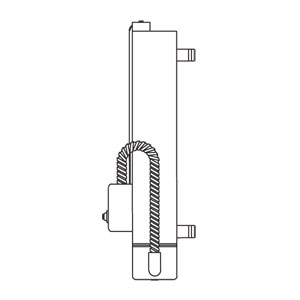

GCHAI:Medium Temperature Steam, Air and Gas Applications
Click for larger image.

• Oval Flange Design
• 2" Carbon Steel Pipe Body, 150 Lb Construction
• 750°F Max. Vessel Temp.
• 1 - 1.5 kW
• 120, 240 and 480V, Single Phase
• General Purpose Terminal Enclosure
• Two 0.475" Dia. INCOLOY Sheath Elements (20 W/In 2 )
• Side Mounted AR Thermostat (200 - 550°F)
• CSA and Other Third Party Approval, Listing or Certification Available

View related products - Circulation Heaters

Click to scroll below to order See Specs PDF View a printer friendly page

APPLICATIONS
Steam, Air and Gas: Low-cost solution to heating steam or gases in remote applications.

FEATURES
Terminal Enclosure: E1 General Purpose is standard.
Elements: Two INCOLOY sheath elements.
Flange: Oval (manifold) heater flange.
Vessel: Pipe body and nozzles are ASTM A53B carbon steel pipe. The end disk is ASTM A516 Grade 70 carbon steel plate. Provided with thermal insulation and painted sheet metal jacket.
Wiring: Convenient field wiring terminals are provided for easy installation.
Controls: Stock and assembly stock heaters come equipped with side mounted mechanical AR thermostat.



kW Volts Ckt &
Phase		 Dimensions (In.) Model No. Wt
Ib(kg)
A B C
2 inch, 150 lb carbon steel vessel — 2 INCOLOY elements — 1600°F maximum sheath temperature.
11201-123 3/1615—GCHAI-02-001P-E1/120V17
12401-123 3/1615—GCHAI-02-001P-E1/240V17
14801-123 3/1615—GCHAI-02-001P-E1/480V17
1.51201-131 3/1623—GCHAI-02-01P5-E1/120V24
1.52401-131 3/1623—GCHAI-02-01P5-E1/240V24
1.54801-131 3/1623—GCHAI-02-01P5-E1/480V24
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 GCHAI-02-01P5-E1/120V    Consult sales   Gas circulation heater,1500 watt,120 volt,single phase
 GCHAI-02-01P5-E1/240V    Consult sales   Gas circulation heater,1500 watt,240volt,single phase
† Price are shown in RMB.
