High Temperature Gas Circulation Heater for Applications to 1200°F

GCHIS, GCHISB and GCHISR Series

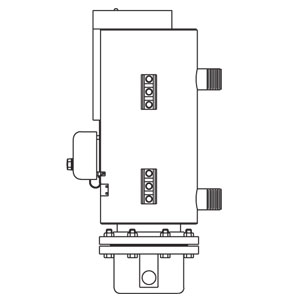

Gas Circulation Heater

Click for larger image.

•	2 - 200 kW
•	240 or 480 Volts
•	Incoloy ® Elements, max sheath temperature of 871°C (1600°F)
View related products - Circulation Heaters

kW	Volts	Ckt & Phase	Dimensions (In.)			Model No.	Wt. (Lb.)
kW	Volts	Ckt & Phase	A	B	C	Model No.	Wt. (Lb.)
Series 03 — 3 inch, 150 lb 304 stainless steel vessel — 3 INCOLOY elements (15 W/In2) with side mounted thermostat (200 to 550°F) — 1" NPT pipe inlet and outlet¹
2	240	1-3	33 1/4	22 1/2	16 1/2	GCHISR-03-002P-E1/240*	62
2	480	1-3	33 1/4	22 1/2	16 1/2	GCHISR-03-002P-E1/480*	62
4	240	1-3	55 3/4	45	36	GCHISR-03-004P-E1/240*	94
4	480	1-3	55 3/4	45	36	GCHISR-03-004P-E1/480*	94
Series 06 — 5 inch, 150 lb 304 stainless steel vessel — 6 INCOLOY elements (15 W/In2) with side mounted thermostat (200 to 550°F) — 2" NPT pipe inlet and outlet¹
4	240	1-3	41 3/4	30	11 3/8	GCHISR-06-004P-E1/240*	135
4	480	1-3	41 3/4	30	11 3/8	GCHISR-06-004P-E1/480*	135
8	240	1-3	48 3/4	37	14 7/8	GCHISR-06-008P-E1/240*	164
8	480	1-3	48 3/4	37	14 7/8	GCHISR-06-008P-E1/480*	164
12	240	1-3	60 1/4	48 1/2	20 5/8	GCHISR-06-012P-E1/240*	195
12	480	1-3	60 1/4	48 1/2	20 5/8	GCHISR-06-012P-E1/480*	195
15	240	1-3	73 5/8	61 7/8	27 5/16	GCHISR-06-015P-E1/240*	215
15	480	1-3	73 5/8	61 7/8	27 5/16	GCHISR-06-015P-E1/480*	215
20	240	1-3	86 5/8	74 7/8	33 7/8	GCHISR-06-020P-E1/240*	253
20	480	1-3	86 5/8	74 7/8	33 7/8	GCHISR-06-020P-E1/480*	253
Series 06 — 5 inch, 150 lb 304 stainless steel vessel — 6 INCOLOY elements (23 W/In2) with side mounted thermostat (200 to 550°F) — 2" NPT pipe inlet and outlet¹
25	240	2-3	73 5/8	61 7/8	27 5/16	GCHIS-06-025P-E1/240*	195
25	480	1-3	73 5/8	61 7/8	27 5/16	GCHIS-06-025P-E1/480*	195
30	240	2-3	86 5/8	74 7/8	33 7/8	GCHIS-06-030P-E1/240*	240
30	480	1-3	86 5/8	74 7/8	33 7/8	GCHIS-06-030P-E1/480*	240
Series 18 — 8 inch, 150 lb 304 stainless steel vessel — 18 baffled INCOLOY elements1 (23 W/In2)
30	240	3-3	50 1/8	28 1/2	25	GCHISB-18-030P-E1/240*	340
30	480	3-3	50 1/8	28 1/2	25	GCHISB-18-030P-E1/480*	340
40	240	3-3	54 5/16	32 11/16	29 3/16	GCHISB-18-040P-E1/240*	410
40	480	3-3	54 5/16	32 11/16	29 3/16	GCHISB-18-040P-E1/480*	410
50	240	3-3	61 5/16	39 11/16	36 3/16	GCHISB-18-050P-E1/240*	480
50	480	3-3	61 5/16	39 11/16	36 3/16	GCHISB-18-050P-E1/480*	480
Series 27 — 10 inch, 150 lb stainless steel vessel — 27 INCOLOY elements1 (20 W/In2)
50	240	3-3	56 9/16	31	27 1/2	GCHIS-27-050P-E1/240*	340
50	480	3-3	56 9/16	31	27 1/2	GCHIS-27-050P-E1/480*	340
60	240	3-3	62 9/16	37	33 1/2	GCHIS-27-060P-E1/240*	370
60	480	3-3	62 9/16	37	33 1/2	GCHIS-27-060P-E1/480*	370
70	240	3-3	68 9/16	43	39 1/2	GCHIS-27-070P-E1/240*	400
70	480	3-3	68 9/16	43	39 1/2	GCHIS-27-070P-E1/480*	400
80	240	3-3	75 9/16	50	46 1/2	GCHIS-27-080P-E1/240*	430
80	480	3-3	75 9/16	50	46 1/2	GCHIS-27-080P-E1/480*	430
90	240	3-3	81 9/16	56	52 1/2	GCHIS-27-090P-E1/240*	543
90	480	3-3	81 9/16	56	52 1/2	GCHIS-27-090P-E1/480*	560

*To Order — Add phase suffix /1P, /2P or /3P to model number. (when specified)
1. Recommended temperature limits for all GCH heaters with stainless steel vessels and INCOLOY elements are 1600° F maximum for the sheath temperature and 1200° F maximum for the vessel temperature at 5 psi maximum pressure. Exceeding these recommendations will void the factory warranty. Outlet gas temperatures must be kept below both the maximum sheath and vessel temperatures or element and vessel damage may occur.
Other Note — Refer to the Controls section for side mounted controls or control panels.

kW	Volts	Ckt & Phase	Dimensions (In.)					Model No.	Wt. (Lb.)
kW	Volts	Ckt & Phase	A	B	C	D	E	Model No.	Wt. (Lb.)
Series 45 — 14 inch, 150 lb stainless steel vessel — 45 INCOLOY elements1 (15 W/In2)
90	480	3-3	76	57 3/16	66 11/16	15	11 1/2	GCHIS-45-090P-E1/90	925
125	480	3-3	91	72 3/16	81 11/16	15	111 1/2	GCHIS-45-125P-E1/125	1025
150	480	3-3	106	87 3/16	96 11/16	15	111 1/2	GCHIS-45-150P-E1/150	1125
175	480	3-3	121	102 3/16	111 11/16	15	111 1/2	GCHIS-45-175P-E1/175	1225
200	480	3-3	128 1/2	109 11/16	119 11/16	15	111 1/2	GCHIS-45-200P-E1/200	1325

1. Recommended temperature limits for all GCH heaters with stainless steel vessels and INCOLOY elements are 1600°F maximum for the sheath temperature and 1200°F maximum for the vessel temperature at 5 psi pressure maximum. Exceeding these recommendations will void the factory warranty. Outlet gas temperatures must be kept below both the maximum sheath and vessel temperature or element and vessel damage may occur.
Other Note — Refer to the Controls section for side mounted controls or control panels.<

Please review the tables and spec sheet to verify Valid Part Numbers
to ensure best results when using the "Part Number Builder" below

Order on www.omegaengineering.cn and 5% will be discounted when you checkout.

To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping

Part Number	Availability	Price(RMB)	Description	Qty.

Example part numbers are shown below. For additional configurations see the Part Number Builder below this table.

GCHISR-03-002P-E1/240		Consult sales	Series 03, 3 inch, 150 lb 304 stainless steel vessel, 240 V	qty.

GCHISR-06-008P-E1/480		Consult sales	Series 06, 5 inch, 150 lb 304 stainless steel vessel, 480 V	qty.

GCHISB-18-030P-E1/240		Consult sales	Series 18, 8 inch, 150 lb 304 stainless steel vessel, 240 V	qty.

GCHIS-27-090P-E1/480		Consult sales	Series 27, 10 inch, 150 lb stainless steel vessel, 480 V	qty.

† Price are shown in RMB.

Part Number Builder

(1)		(2)		(3)		(4)
	- -		- -		P P - - E E 1 1 / /
Qty:

Option Descriptions

(1)

Series

Select
GCHIS for GCHIS Series
GCHISB for GCHISB Series
GCHISR for GCHISR Series

(2)

Elements

Select
03 for 3 INCOLOY elements
06 for 6 INCOLOY elements
18 for 18 baffled INCOLOY elements
27 for 27 INCOLOY elements
45 for 45 INCOLOY elements

(3)

Wattage

Select
002 for 2 kW
004 for 4 kW
008 for 8 kW
012 for 12 kW
015 for 15 kW
020 for 20 kW
025 for 25 kW
030 for 30 kW
040 for 40 kW
050 for 50 kW
060 for 60 kW
070 for 70 kW
080 for 80 kW
090 for 90 kW
125 for 125 kW
150 for 150 kW
175 for 175 kW
200 for 200 kW

(4)

Voltage

Select
240 for 240 V
480 for 480 V

NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
