Thermocouple Probes With Low Noise Standard Size Connectors
G(*)QIN and G(*)QSS

Thermocouple Probes With Low Noise Standard Size Connectors
G(*)QIN and G(*)QSS:Thermocouple Probes With Low Noise Standard Size Connectors

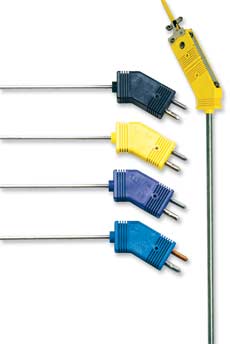

Click for larger image.

• Made from Special Limits of Error Material
• Connector Body Rated to 220°C (425°F)
• Ground Strap Connection Provides Protection Against Electrical Noise
• Ground Strap Provides Additional Mechanical Rigidity
• Write-On Area for Easy Identification
• Compatible with Standard Style Probes and Connectors
• Mating Connector, Cable Clamp, Write-On Windows and Ground Strap Sold Separately!!

View related products - Thermocouples

Click to scroll below to order See Specs PDF Related Items View a printer friendly page

The OMEGA ® low noise thermocouple probes and connectors maintain an electrical connection from the sheath of the probe, through the connectors, all the way to your instrumentation. This system assures high accuracy measurements, providing protection against electrical noise. The external strap maintains the electrical connection of the ground wire, and also strengthens the mechanical connection between the two connectors. The female connector features a handy write-on area, for easy identification.



Standard Dimensions - Quick Disconnect Probes with Standard Size Connectors
Alloy/ANSI
Color Code 		Sheath
Dia. in. 		Model No.
12" Length 		Model No.
18" Length 		Model No.
24" Length
J
IRON-CONSTANTAN
Inconel Sheath 		1/16"
1/8"
3/16"
1/4" 		GJQIN-116(*)-12
GJQIN-18(*)-12
GJQIN-316(*)-12
GJQIN-14(*)-12 		GJQIN-116(*)-18
GJQIN-18(*)-18
GJQIN-316(*)-18
GJQIN-14(*)-18 		GJQIN-116(*)-24
GJQIN-18(*)-24
GJQIN-316(*)-24
GJQIN-14(*)-24
J
IRON-CONSTANTAN
304 SS Sheath 		1/16"
1/8"
3/16"
1/4" 		GJQSS-116(*)-12
GJQSS-18(*)-12
GJQSS-316(*)-12
GJQSS-14(*)-12 		GJQSS-116(*)-18
GJQSS-18(*)-18
GJQSS-316(*)-18
GJQSS-14(*)-18 		GJQSS-116(*)-24
GJQSS-18(*)-24
GJQSS-316(*)-24
GJQSS-14(*)-24
K
CHROMEGA-® ALOMEGA™
Inconel Sheath 		1/16"
1/8"
3/16"
1/4" 		GKQIN-116(*)-12
GKQIN-18(*)-12
GKQIN-316(*)-12
GKQIN-14(*)-12 		GKQIN-116(*)-18
GKQIN-18(*)-18
GKQIN-316(*)-18
GKQIN-14(*)-18 		GKQIN-116(*)-24
GKQIN-18(*)-24
GKQIN-316(*)-24
GKQIN-14(*)-24
K
CHROMEGA-® ALOMEGA™
304 SS Sheath 		1/16"
1/8"
3/16"
1/4" 		GKQSS-116(*)-12
GKQSS-18(*)-12
GKQSS-316(*)-12
GKQSS-14(*)-12 		GKQSS-116(*)-18
GKQSS-18(*)-18
GKQSS-316(*)-18
GKQSS-14(*)-18 		GKQSS-116(*)-24
GKQSS-18(*)-24
GKQSS-316(*)-24
GKQSS-14(*)-24
E
CHROMEGA™-CONSTANTAN
Inconel Sheath 		1/16"
1/8"
3/16"
1/4" 		GEQIN-116(*)-12
GEQIN-18(*)-12
GEQIN-316(*)-12
GEQIN-14(*)-12 		GEQIN-116(*)-18
GEQIN-18(*)-18
GEQIN-316(*)-18
GEQIN-14(*)-18 		GEQIN-116(*)-24
GEQIN-18(*)-24
GEQIN-316(*)-24
GEQIN-14(*)-24
E
CHROMEGA™-CONSTANTAN
304 SS Sheath 		1/16"
1/8"
3/16"
1/4" 		GEQSS-116(*)-12
GEQSS-18(*)-12
GEQSS-316(*)-12
GEQSS-14(*)-12 		GEQSS-116(*)-18
GEQSS-18(*)-18
GEQSS-316(*)-18
GEQSS-14(*)-18 		GEQSS-116(*)-24
GEQSS-18(*)-24
GEQSS-316(*)-24
GEQSS-14(*)-24
T
COPPER-CONSTANTAN
Inconel Sheath 		1/16"
1/8"
3/16"
1/4" 		GTQIN-116(*)-12
GTQIN-18(*)-12
GTQIN-316(*)-12
GTQIN-14(*)-12 		GTQIN-116(*)-18
GTQIN-18(*)-18
GTQIN-316(*)-18
GTQIN-14(*)-18 		GTQIN-116(*)-24
GTQIN-18(*)-24
GTQIN-316(*)-24
GTQIN-14(*)-24
T
COPPER-CONSTANTAN
304 SS Sheath 		1/16"
1/8"
3/16"
1/4" 		GTQSS-116(*)-12
GTQSS-18(*)-12
GTQSS-316(*)-12
GTQSS-14(*)-12 		GTQSS-116(*)-18
GTQSS-18(*)-18
GTQSS-316(*)-18
GTQSS-14(*)-18 		GTQSS-116(*)-24
GTQSS-18(*)-24
GTQSS-316(*)-24
GTQSS-14(*)-24
* Specify junction type: G (Grounded), E (Exposed), or U (Ungrounded).


Click here for help in selecting the thermocouple junction.
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 Typical part numbers are shown below. Please use the Part Number Builder below this table for other configurations.
 GJQIN-18U-24 6 Weeks   ¥580.00    Quick disconnect probe, type J, Inconel sheath, 1/ 8 " O.D., ungrounded junction, 24" length
 GJQSS-116G-12 6 Weeks   ¥450.00    Quick disconnect probe, type J, 304SS sheath, 1/ 16 " O.D., grounded junction, 12" length
 GKQIN-18U-18 2 Weeks   ¥550.00    Quick disconnect probe, type K, Inconel sheath, 1/ 8 " O.D., ungrounded junction, 18" length
 GKQSS-316G-12 2 Weeks   ¥495.00    Quick disconnect probe, type K, 304SS sheath, 3/16 " O.D., grounded junction, 12" length
 GEQIN-116G-12 6 Weeks   ¥470.00    Quick disconnect probe, type E, Inconel sheath, 1/ 16 " O.D., grounded junction, 12" length
 GEQSS-14G-24 6 Weeks   ¥615.00    Quick disconnect probe, type E, 304SS sheath, 1/4 " O.D., grounded junction, 24" length
 GTQIN-116G-18 6 Weeks   ¥480.00    Quick disconnect probe, type T, Inconel sheath, 1/ 16 " O.D., grounded junction, 18" length
 GTQSS-14G-24 6 Weeks   ¥610.00    Quick disconnect probe, type T, 304SS sheath, 1/ 4 " O.D., grounded junction, 24" length
 Sold Separately, Mating Connector & clamp & other accessory Part Number
 HGST-J-F 2 Weeks   ¥159.00    High performance, low noise, high temperature Standard mating connector
 HGST-K-F 2 Weeks   ¥153.00    High performance, low noise, high temperature Standard mating connector
 HGST-E-F 6 Weeks   ¥150.00    High performance, low noise, high temperature Standard mating connector
 HGST-T-F In Stock   ¥159.00    High performance, low noise, high temperature Standard mating connector
 PCLM-GST 2 Weeks   ¥19.75    CABLE CLAMP
 GS-GST-10 In Stock   ¥68.00    Extra ground straps
 WCP-GST 5 Weeks   ¥14.00    Extra replacement write-on windows, side (Pack of 5)
 WCP-L 5 Weeks   ¥19.00    Extra replacement write-on windows, connector face (Pack of 5)
† Price are shown in RMB.

 Note: Each probe includes a protective ground strap. For applications not requiring the external ground strap, plastic write-on windows are included with each probe and connector to provide additional write-on areas. Note: Windows cannot be used concurrently with ground.
To Order other Sheaths, change "SS" in part no. to "IN" for Inconel , no add’l charge; "310SS" for 310 SS, no add’l charge or "XL" for Super OMEGACLAD™, add $3 to price of 12", 18" and 24" probes.
  Ordering Example: (1) GKQSS-316G-12 Quick disconnect probe, type K, 304SS sheath, 3 / 16, ¥495.00
   Part Number Builder
(1) (2) (3) (4) (5)
G
G
Q
Q
-
-
-
-
Qty:
Option Descriptions
(1) Thermocouple Type
  Select
J for J Type
K for K Type
E for E type
T for T Type
(2) Sheath Material
  Select
SS for Stainless Steel
IN for Inconel
(3) Sheath Diameter
  Select
116 for 1/16 Inch
18 for 1/8 Inch
316 for 3/16 Inch
14 for 1/4 Inch
(4) Thermocouple Junction
  Select
G for Grounded
U for Ungrounded
E for Exposed
(5) Sheath Length
  Select
12 for 12 Inches
18 for 18 Inches
24 for 24 Inches
CUSTOM for custom length in inches(whole numbers only up to 120 inches max)
 NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
