600V Fast Acting Fuses, Class CC 10x38, 0.5 to 30 Amps

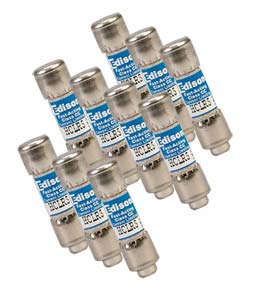

HCLR Series Fast Acting Fuse

600V Fast Acting Fuses

Click for larger image.

^¥ 830.00 HCLR5

•	Fast Acting 600V Fuse
•	Compact Design
•	High Interupt Rating
•	0.5 to 30 A Rating
•	Class CC Fuse
View related products - Power Products

A fast acting, high-interrupt capacity, current limiting type fuse. The HCLR style fuse provides an excellent choice for applications such as: lighting and resistive heating loads.

SPECIFICATIONS
Dimensions: ¹³⁄₃₂" ferrule, 38 mm (1.5") length
Weight: Approx 3.2 oz (0.2 lb)
Voltage Rating: HCLR-600 Vac
Ampere Rating: 0.1 to 30 A
Interrupting Rating: 200k RMS Amps
Current Limiting: Class CC Fuse
Agency Approvals: UL Listed, Class CC, Guide JDDZ, File E162363; CSA Certified HCLR-MISC per C22.2, No.248.4

Order on www.omegaengineering.cn and 5% will be discounted when you checkout.

To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping

Part Number	Availability	Price(RMB)	Description	Qty.
HCLR.5	2 Weeks	¥205.00	0.5 Amps	qty.

HCLR.75	6 Weeks	¥219.00	0.75 Amps	qty.

HCLR1	6 Weeks	¥209.00	1.0 Amps	qty.

HCLR1.5	2 Weeks	¥198.00	1.5 Amps	qty.

HCLR2	2 Weeks	¥201.00	2.0 Amps	qty.

HCLR2.5	6 Weeks	¥248.00	2.5 Amps	qty.

HCLR3	6 Weeks	¥198.00	3.0 Amps	qty.

HCLR3.5	6 Weeks	¥255.00	3.5 Amps	qty.

HCLR4	6 Weeks	¥205.00	4.0 Amps	qty.

HCLR5	2 Weeks	¥830.00	5.0 Amps	qty.

HCLR6	2 Weeks	¥615.00	6 Amps	qty.

HCLR7	6 Weeks	¥233.00	7 Amps	qty.

HCLR8	6 Weeks	¥205.00	8 Amps	qty.

HCLR9	6 Weeks	¥255.00	9 Amps	qty.

HCLR10	2 Weeks	¥680.00	10 Amps	qty.

HCLR12	6 Weeks	¥198.00	12 Amps	qty.

HCLR15	6 Weeks	¥198.00	15 Amps	qty.

HCLR20	2 Weeks	¥680.00	20 Amps	qty.

HCLR25	2 Weeks	¥205.00	25 Amps	qty.

HCLR30	2 Weeks	¥184.00	30 Amps	qty.

† Price are shown in RMB.

Ordering Example: (1) HCLR5 600V fast acting fuses with 5 A rating, ¥830.00
