Constant Temperature Heated Dry Baths
HDB
1 year warranty

Constant Temperature Heated Dry Baths

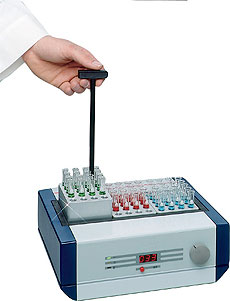

HDB:Constant Temperature Heated Dry Baths
Click for larger image.

• Uniform Heating for Test Tubes, Cuvettes, and Other Sample Containers
• Interchangeable Insert Blocks
• Models for 1, 2 or 3 Insert Blocks
• Solid State Temperature Control

View related products - Laboratory Equipment

Click to scroll below to order See Specs PDF View a printer friendly page

OMEGA™ HDB series heated dry baths provide a safe, dry, constant temperature source in the laboratory for the purpose of incubation, boiling, inactivation, wet ashing, enzyme analysis and a variety of clinical and industrial applications.

Interchangeable aluminum insert blocks are sized to accept tubes or containers ranging from 6 mm to 26 mm diameter. A close fit of the tubes in the block ensures high heat transfer to the tube, and the heater design, thermistor temperature sensor and solid state circuitry give exceptionally good temperature stability and uniformity.

Temperature stability is ±0.1°C, and uniformity between blocks is ± 0.2°C (both at 40°C).

Temperatures are adjusted in the HDB-1, HDB-2, and HDB-3 using a dial calibrated in degrees centigrade. On the HDB-3D, the dial and digital display are used to set the temperature. The digital indicator also provides a continuous temperature display.

A block extraction tool, and threaded fitting machined into the block, allow easy block removal. The threaded hole is also used to insert glass thermometers for accurate temperature measurement of the block.

Aluminum Insert Blocks
Model No. Tube Size Number of Holes Size (mm)
6013501Plain BlockNone95 x 76 x 51
60135026 mm3095 x 76 x 51
601350310 mm2095 x 76 x 51
601350412 mm2095 x 76 x 51
601350513 mm2095 x 76 x 51
601350615 mm1295 x 76 x 51
601350716 mm1295 x 76 x 51
601350819 mm895 x 76 x 51
601350925 mm695 x 76 x 51
601351010 mm cuvettes 2 channels 95 x 76 x 51
6013512*Plain Block ThermometerHole Only95 x 225 x 51
6014460Plain Block ThermometerHole Only95 x 76 x 51
601446224 mm695 x 76 x 51
601446326 mm695 x 76 x 51
60144641.5 ml Eppendorf2095 x 76 x 51
60144650.5 ml Eppendorf3095 x 76 x 51
6014466Plastic Half Plain Blocks** 95 x 37 x 50
*For HDB-3, HDB-3D only
**If less than the maximum number of blocks are used, it is recommended that the plastic half blocks fill the space on either side of the aluminum block(s) in order to maintain temperature stability
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 Heated Dry Baths
 HDB-2    Consult sales   Heated dry bath, 2 blocks, 25°C to 105°C, 450 W, 120V
 HDB-3    Consult sales   Heated dry bath, 3 blocks, 25°C to 200°C 650 W, 120V
 HDB-3D    Consult sales   Heated dry bath, 3 blocks, 25°C to 200°C 650 W, 120V, temperature and setpoint display
 Aluminum Insert Blocks
 6013501 16 Weeks   ¥2,280.00    0-hole insert block
 6013502    Consult sales   30-hole insert block
 6013503 16 Weeks   ¥2,280.00    20-hole insert block
 6013504 16 Weeks   ¥2,280.00    20-hole insert block
 6013505 16 Weeks   ¥2,280.00    20-hole insert block
 6013506 16 Weeks   ¥2,280.00    12-hole insert block
 6013507 16 Weeks   ¥2,280.00    12-hole insert block
 6013508 16 Weeks   ¥2,280.00    8-hole insert block
 6013509 16 Weeks   ¥2,280.00    6-hole insert block
 6013510    Consult sales   Insert block
 6013512 16 Weeks   ¥6,100.00    Hole-only insert block
 6014460    Consult sales   Hole-only insert block
 6014462    Consult sales   6-hole insert block
 6014463 16 Weeks   ¥2,280.00    6-hole insert block
 6014464    Consult sales   20-hole insert block
 6014465    Consult sales   30-hole insert block
 6014466 16 Weeks   ¥640.00    Insert block
† Price are shown in RMB.

 Note: Comes with block extraction tool, power cord and plug, and operator’s manual. Aluminum insert blocks are ordered separately (see table above).
240 volt models also available. To order add “-240V” suffix to model number.
  Ordering Example: (2) 6013503 20-hole insert blocks, ¥2,280.00 ea.,
