Thermocouple Probes with Low Noise High Temperature Standard Size Connectors, Model numbers HGJQIN, HGKQIN, HGTQIN,HGEQIN, HGJQSS, HGKQSS, HGTQSS, HGEQSS |
| HG(*)QIN and HG(*)QSS Series |
|
 |
|
|
Thermocouple Probes with Low Noise High Temperature
 |
| Click for larger image. |
|
|
¥
510.00

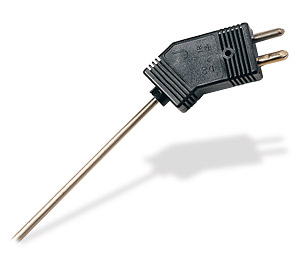

HGJQIN-116G-12
|
| • |
Made with Special Limits of Error Material
|
| • |
Connector Temperature Ratings: 260°C (500°F)
|
| • |
Environmentally Friendly Cadmium-Free Liquid Crystal Polymer Material
|
| • |
Mating Connector, Cable Clamp, Write-On Windows and Ground Strap Included!
|
| • |
Ground Strap Connection Provides Protection Against Electrical Noise
|
| • |
Ground Strap Provides Additional Mechanical Rigidity
|
| • |
Write-on Area for Easy Identification
|
| • |
Compatible with Standard Style Probes and Connectors
|
View related products - Thermocouples
|
| |
|
|
|
 |
The OMEGA ® low noise thermocouple probes and connectors maintain an electrical connection from the sheath of the probe, through the connectors, all the way to your instrumentation. This system assures high accuracy measurements, providing protection against electrical noise.
The external strap maintains the electrical connection of the ground wire, and also strengthens the mechanical connection between the two connectors. The female connector features a handy write-on area, for easy identification.
Standard Dimension
Thermocouple
Alloy | Sheath Dia.
inches | Model No.
12" Length | Model No.
18" Length | Model No.
24" Length |
J
IRON-CONSTANTAN
Inconel Sheath | 1/16"
1/8"
3/16"
1/4" | HGJQIN-116(*)-12
HGJQIN-18(*)-12
HGJQIN-316(*)-12
HGJQIN-14(*)-12 | HGJQIN-116(*)-18
HGJQIN-18(*)-18
HGJQIN-316(*)-18
HGJQIN-14(*)-18 | HGJQIN-116(*)-24
HGJQIN-18(*)-24
HGJQIN-316(*)-24
HGJQIN-14(*)-24 |
J
IRON-CONSTANTAN
304 SS Sheath | 1/16"
1/8"
3/16"
1/4" | HGJQSS-116(*)-12
HGJQSS-18(*)-12
HGJQSS-316(*)-12
HGJQSS-14(*)-12 | HGJQSS-116(*)-18
HGJQSS-18(*)-18
HGJQSS-316(*)-18
HGJQSS-14(*)-18 | HGJQSS-116(*)-24
HGJQSS-18(*)-24
HGJQSS-316(*)-24
HGJQSS-14(*)-24 |
K
CHROMEGA™-ALOMEGA™
Inconel Sheath | 1/16"
1/8"
3/16"
1/4" | HGKQIN-116(*)-12
HGKQIN-18(*)-12
HGKQIN-316(*)-12
HGKQIN-14(*)-12 | HGKQIN-116(*)-18
HGKQIN-18(*)-18
HGKQIN-316(*)-18
HGKQIN-14(*)-18 | HGKQIN-116(*)-24
HGKQIN-18(*)-24
HGKQIN-316(*)-24
HGKQIN-14(*)-24 |
K
CHROMEGA™-ALOMEGA™
304 SS Sheath | 1/16"
1/8"
3/16"
1/4" | HGKQSS-116(*)-12
HGKQSS-18(*)-12
HGKQSS-316(*)-12
HGKQSS-14(*)-12 | HGKQSS-116(*)-18
HGKQSS-18(*)-18
HGKQSS-316(*)-18
HGKQSS-14(*)-18 | HGKQSS-116(*)-24
HGKQSS-18(*)-24
HGKQSS-316(*)-24
HGKQSS-14(*)-24 |
E
CHROMEGA™-CONSTANTAN
Inconel Sheath | 1/16"
1/8"
3/16"
1/4" | HGEQIN-116(*)-12
HGEQIN-18(*)-12
HGEQIN-316(*)-12
HGEQIN-14(*)-12 | HGEQIN-116(*)-18
HGEQIN-18(*)-18
HGEQIN-316(*)-18
HGEQIN-14(*)-18 | HGEQIN-116(*)-24
HGEQIN-18(*)-24
HGEQIN-316(*)-24
HGEQIN-14(*)-24 |
E
CHROMEGA™-CONSTANTAN
304 SS Sheath | 1/16"
1/8"
3/16"
1/4" | HGEQSS-116(*)-12
HGEQSS-18(*)-12
HGEQSS-316(*)-12
HGEQSS-14(*)-12 | HGEQSS-116(*)-18
HGEQSS-18(*)-18
HGEQSS-316(*)-18
HGEQSS-14(*)-18 | HGEQSS-116(*)-24
HGEQSS-18(*)-24
HGEQSS-316(*)-24
HGEQSS-14(*)-24 |
T
COPPER-CONSTANTAN
Inconel Sheath | 1/16"
1/8"
3/16"
1/4" | HGTQIN-116(*)-12
HGTQIN-18(*)-12
HGTQIN-316(*)-12
HGTQIN-14(*)-12 | HGTQIN-116(*)-18
HGTQIN-18(*)-18
HGTQIN-316(*)-18
HGTQIN-14(*)-18 | HGTQIN-116(*)-24
HGTQIN-18(*)-24
HGTQIN-316(*)-24
HGTQIN-14(*)-24 |
T
COPPER-CONSTANTAN
304 SS Sheath | 1/16"
1/8"
3/16"
1/4" | HGTQSS-116(*)-12
HGTQSS-18(*)-12
HGTQSS-316(*)-12
HGTQSS-14(*)-12 | HGTQSS-116(*)-18
HGTQSS-18(*)-18
HGTQSS-316(*)-18
HGTQSS-14(*)-18 | HGTQSS-116(*)-24
HGTQSS-18(*)-24
HGTQSS-316(*)-24
HGTQSS-14(*)-24 |
*Specify junction type: G (Grounded), E (Exposed), or U (Ungrounded). No add'l charge for lengths from 2 to 12".
Click here for help in selecting the thermocouple junction.
View the Thermocouple Accuracy and Color Code charts
|
|
|
|
|
|
† Price are shown in RMB.
Note: Each probe supplied with mating connector, cable clamp and ground strap. Consult Sales for Custom Lengths. Extra ground straps, GS-GST-10, $2.75/pkg of 10. To Order with 321 SS Sheath, change ‘SS’ in model number to ‘321SS’, no additional charge; Example: HGKQ321SS-316G-12. To order Super OMEGACLAD™, change ‘IN’ to ‘XL,’ add $3.
Ordering Example: (1) HGKQSS-316G-12 Quick disconnect probe, type K, 304SS sheath, 3/16" O.D., grounded junction, 12" length, ¥550.00
|
|
|
|
|
|
|
|
|
Part Number Builder |
|
|
|
|
|
|
|
|
Option Descriptions
|
|
(1)
|
Thermocouple Type
|
| |
Select
J for Type J
K for Type K
E for Type E
T for Type T
|
(2)
|
Sheath Material
|
| |
Select
SS for 304 Stainless Steel
IN for Inconnel
|
(3)
|
Sheath Diameter
|
| |
Select
116 for 1/16 Inch
18 for 1/8 Inch
316 for 3/16 Inch
14 for 1/4 Inch
|
(4)
|
Thermocouple Junction
|
| |
Select
G for Grounded
U for U Ungrounded
E for Exposed
|
(5)
|
Sheath Length
|
| |
Select
12 for 12 Inches
18 for 18 Inches
24 for 24 Inches
|
|
NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
|
| | | |
|
|
|
|
|
|
| |
|
