Low Cost Type K Thermocouple Datalogger/Thermometers
•
Dual Input
•
Resolution 0.1°C, 0.1°F
•
Triple Display
•
Range: -200 to 1370°C (-328 to 2498°F)
•
Accuracy: +/-1°C or +/-2°F
•
RS-232 Interface with Windows Software
•
Low Battery Indication
•
16,000 Records Data Logger
•
Auto Power Off
•
HOLD Function
•
MAX MIN Function
•
HH306: TIME Function to Show Date and Time
•
NIST Traceable Certificate of Calibration

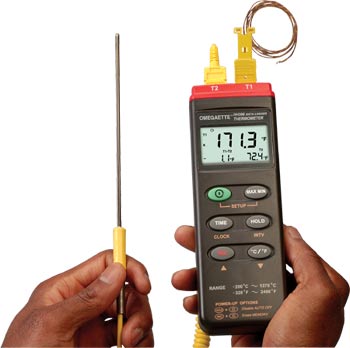

The HH306 is a small dual input
thermometer plus a powerful
datalogger. The unit can store up
to 16,000 records at programmed
intervals as fast as once per
second. The unit comes with
Windows based software for the
display and saving of data.
Specifications Range and Accuracy:
-200 to 1370°C ±0.2%rdg +1°C
-328 to 2498°F ±0.2% rdg + 2°F Operating Conditions:
0 to 50°C (32 to 122°F)
0% to 80%RH (0 to 35°C, 32 to 95°F)
0% to 60%RH (35 to 50°C, 95 to 122°F) Storage Temperature:
-20 to 60°C (-4 to 140°F) Input Protection:
60 Vdc or 24 Vrms AC Maximum Battery: 9 V (included) Dimensions:
184 H x 64 W x 30 mm D
(7.25 x 2.5 x 1.2") Weight: Approx. 210 g (7.4 oz)
† Price are shown in RMB.
Note: Comes with carrying case, a type K T/C for each channel, software, RS-232 interface cable, battery, mini-tripod and operators manual
