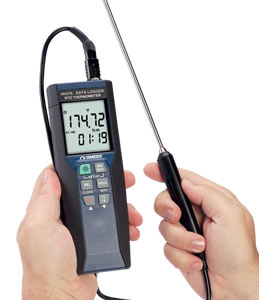

The HH376 is a high accuracy RTD
thermometer plus a powerful data
logger. The unit can store up to
16,000 records at programmed
intervals. Windows® based software
and USB interface cable are
included to allow real time or
recorded data to be read by a PC
through the USB or RS232 port
(RS232 cable is optional).
HH376 is supplied with a precision
4-wire RTD probe with automatic
locked push-pull connector for
easy connection.
SPECIFICATIONS
Instrument
Numerical Display: 5-digit LCD Measurement Range: -100 to 400°C (-148 to 752°F) Resolution: 0.01°C (0.02°F) Sensor Types: Platinum resistance temperature sensor for pt-100 4 wires, ALPHA = 0.00385
Environmental
Operating Temperature and Humidity: 0 to 50°C (32 to 122°F); 0 to 80% RH Storage Temperature: -10 to 60°C (14 to 140°F); 0 to 80% RH; altitude up to 2000 meters Accuracy: At (23 ±5°C) Range Accuracy: -100 to 400°C ±(0.05% reading + 0.1°C); -148 to 752°F ±(0.05% reading + 0.2°F) Temperature Coefficient: For ambient temperatures from 0 to 18°C and 28 to 50°C, for each °C ambient below 18°C or above 28°C add the following tolerance into the accuracy spec. 0.005% of reading + 0.01°C (0.005% of reading + 0.02°F) Sample Rate: 2 times per second Dimensions: 185 L x 65 W x 36 mm D (meter only) Weight: 360 g approx. Power Requirement: 9V battery (included) AC Adaptor: 9 Vdc (7 to 10V max)/20 mA min (plug diameter: 3.5 x 1.35 mm) Battery Life: Approx. 100 hrs
Probe
Sensor Type: Pt100 (4 wire) Accuracy: Class A13, temperature probe Measurement Range: -100 to 400°C (-148 to 752°F) Sheath Diameter: 5.0 mm (0.2") Sheath Length: 230 mm (9.05") Cable Length: 1500 mm (59.0")
† Price are shown in RMB.
Note: Comes complete with precision RTD probe, USB cable, Windows software, NIST certificate, carrying case, 9V battery, and operator’s manual.
