OMEGAETTE® Temperature RS-232 Graphic Recorder
HH500P
1 year warranty CE

Temperature Graphic Recorder

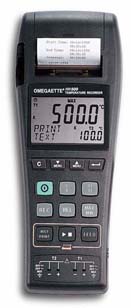

HH500P:OMEGAETTE® Temperature RS-232 Graphic Recorder
Click for larger image.

• Built-in thermal printer for text and graphic printout
• Dual 5 digits bit font LCD display to provide simultaneous readout of T1 and T2. 10 character text area provide set-up menu for easy set-up
• The easy access menu buttons and text area in the LCD display provide hierarchical menu operation for system set-up
• Button group for printer provides the direct access to the most commonly used function for printer control
• Photo coupler isolated RS-232 port provides the direct connection of data flow to a personal computer with software for Windows 95/98 or Windows NT4.0
• Dual inputs thermal couple connector provides two inputs for K and J type temperature sensors

View related products - Handheld Instruments for Temperature Measurement

Click to scroll below to order See Specs PDF Manuals Software View a printer friendly page

The HH500P is a compact handheld dataloggers with a built-in thermal printer. The unit comes with free windows compatible software for use with Windows 95/98/NT. The HH500P takes Type J/K thermocouple with dual inputs. The HH500P can datlog up to 32,000 readings.
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 HH500P    Consult sales   Graphic Temperature Printer/Datalogger
 HH500-RP-2 2 Weeks   ¥70.00    Replacement paper (2 rolls)
† Price are shown in RMB.

 Note: Includes meter, carrying case, 2 type K T/C's, software, RS-232 interface cable, battery and operator's manual
