Dual Input, High Accuracy Datalogger/Thermometer |
| HH506A and HH506RA |
|
 |
|
|

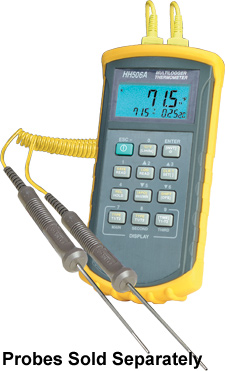

Dual Input, High Accuracy Datalogger/Thermometer
 |
| Click for larger image. |
|
|
¥
2,320.00
HH506RA
|
| • |
2-Channel Temperature Measuring
|
| • |
7 Thermocouple Types
|
| • |
Triple Display with Setable Backlight
|
| • |
Triple Display with Setable Backlight
|
| • |
Save Data (128 Samples with Real-Time Data)
|
| • |
Datalogging (16 Sets, Max 1024 Data Capacity)
|
| • |
Time, Record Interval, APO Time Setting
|
| • |
Software Package Included (RS232C Cable and Disk, Model HH506RA Only)
|
| • |
°C/°F Switchable
|
| • |
0.1 Resolution
|
| • |
Water/Splash Resistant, NEMA-4X,
|
| • |
Dustproof
|
View related products - Handheld Instruments for Temperature Measurement
|
| |
|
|
|
 |
The HH500RA is a low cost, feature-packed,
portable, digital thermometer that measures K, J, R, S, T, E
and N thermocouples. The unit has datalogging capacity in
the save mode of 128 samples with real-time data and in the
datalogging mode of 16 sets, with a maximum data capacity
of 1024 records. Easy to use set-up instructions allow the
user to measure a broad range of T/Cs, MAX/MIN, AVG,
REL, Hold Function, T1/T2.
SPECIFICATIONS
Temperature Range:
K Type: (0.1°, 1° for above 2000°F) -200 to 1372°C (-328 to 2501°F)
J Type: (0.1°, 1° for above 2000°F) -210 to 1200°C (-346 to 2192°F)
T Type: (0.1°) -200 to 400°C (-328 to 752°F)
E Type: (0.1°) -210 to 1000°C (-346 to 1832°F)
R Type: (1°) 0 to 1767°C (32 to 3212°F)
S Type: (1°) 0 to 1767°C (32 to 3212°F)
N Type: (0.1°, 1° for above 2000°F) -50 to 1300°C (-58 to 2372°F)
According to temperature standard ITS-90
Accuracy:
K/J/T/E Type:
±(0.05% rdg + 0.3°C) on -50 to 1370°C
±(0.05% rdg + 0.7°C) on -50 to -210°C
±(0.05% rdg + 0.6°F) on -58 to 2501°F
±(0.05% rdg + 1.4°F) on -58 to -346°F
N Type:
±(0.05% rdg + 0.8°C) on -50 to 0°C
±(0.05% rdg + 0.4°C) on 0 to 1300°C
±(0.05% rdg + 1.6°F) on -58 to 32°F
±(0.05% rdg + 0.8°F) on 32 to 2372°F
R/S Type:
±(0.05% rdg + 2°C) on 0 to 1767°C
±(0.05% rdg + 4°F) on 32 to 3212°F
Resolution: 0.1°C/1°C (0.1°F/1°F)
Power: 9 V battery (included)
Datalogger Capacity:
Save Data: 128 samples with time stamp
Datalogger: 1024 data capacity(interval 1 sec to 23:59:59)
|
|
|
|
|
|
† Price are shown in RMB.
Note: Each unit supplied with 9 V battery, Type K T/C (one per channel), rubber boot, NIST certificate and complete operator’s manual.
HH506RA includes software disk and RS232 cable.
Ordering Example: (1) HH506RA Dual input datalogger w/RS232C, ¥2,320.00,
|
|
|
|
|
| |
|
