High Accuracy PT100 RTD Input Thermometers

HH804
1 year warranty

PT100 RTD Thermometers

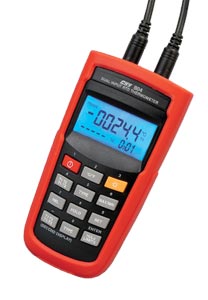

HH804:High Accuracy PT100 RTD Input Thermometers
Click for larger image.

¥ 1,270.00  HH804
PT100 (100 OHM) Platinum
NIST CALIBRATION CERTIFICATE (NO POINTS)
0.00385/0.003916/0.003926 curves
3 or 4 Wire-RTD
High 0.05% Reading Accuracy
MAX/MIN/AVG/REL/HOLD
Elapsed Time
Hi/Lo Limits Alarm (Audible)
Dual Temperature Display
Optional Windows Software
Optional AC Adaptor (USB Models Only)

View related products - Handheld Instruments for Temperature Measurement

Click to scroll below to order See Specs PDF Manuals Software Related Items View a printer friendly page

The HH804U is a high accuracy RTD input thermometer. These handhelds work with 100 . platinum PT100 RTDs and are selectable for 3 different temperature coefficient curves. These units comply with ITS-90. Both come standard with a built in USB port and DC power jack. Optional Windows software and AC adapter allow real time data logging to PC for extended periods. The HH804W model features a quick and easy to use wireless interface instead of USB. This allows real time data transmission at distances of up to 75'.
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping

 Part Number   Availability   Price(RMB)   Description    Qty.
 HH804 In Stock   ¥1,270.00    Dual Input Pt100 RTD meter
 HH804U In Stock   ¥1,750.00    Dual Input Pt100 RTD meter with USB port and DC Power Jack
 HH804W    Consult sales   Wireless Interface, Dual Input Pt100 RTD meter
 Accessories
 HH800-SW In Stock   ¥241.00    Windows software and USB cable (USB models only)
 HH800W-RSW 4 Weeks   ¥208.00    Windows software and wireless receiver (wireless models only)
 HH800-ADAPTOR In Stock   ¥209.00    AC adaptor (USB models only)
 HH800-ADAPTOR-UK    Consult sales   UK AC adaptor (USB models only)
 HH804-CONNECTOR 2 Weeks   ¥121.00    Spare DIN connector
Price are shown in RMB.

 Note: Comes with protective rubber boot, NIST (no points) calibration certificate and complete operator’s manual. Note: All wireless units are not for export except to USA or Canada, 900 Mhz frequency band versions. For European 868.0 Mhz˜ 868.6 Mhz frequency band versions, add suffix “E”, no additional charge.
 Ordering Example: (1) HH804U High accuracy RTD input thermometer, ¥1,750.00
