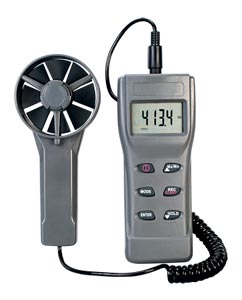

Air Velocity Meter with CFM/BTU/Dew Point/Wet Bulb/Temp/Humidity |
| HHF11A |
|
 |
|
|
|
|
 |
The HHF11A anemometer can measure air flow, humidity, dew
point, wet bulb, air volume, and
capacity. The built-in microprocessor
ensures high accuracy. It can also
track the maximum and minimum
values along with current readings,
displaying the flow rate in the user’s
choice of meters per second or
cubic feet per minute.
With its low-friction, ball-bearing,
mounted-wheel design, the HHF11A
is accurate at both high and low air
velocity. The impeller is accurate to
5% FS and can measure the slightest
breeze (0.3 m/s). Other features
include single-point averaging of air
volume and capacity, °C/°F
selection, and auto shut-off after
10 minutes of non-use.
SPECIFICATIONS
Maximum Reading: 99,999
Cable Length: 50 cm extends to 1.5 m (20" extends to approx. 5')
Vane Diameter: 74 mm (2.9")
Vane Size (H x W x D): 164 x 74 x 40 mm (6.45 x 2.9 x 1.57")
Unit Size (H x W x D): 157 x 62 x 28 mm (6.18 x 2.44 x 1.1")
Display Size (H x W): 34 x 47 mm (1.3 x 1.85")
Digit Height: 18 mm (0.7")
Display: High-contrast 5-digit display
Power: 4 “AAA” batteries (included)
Weight: 263 g (9.28 oz) without batteries
Response Time: 1 second
Operating Current: 5 to 8 mA
Operating Temperature: 0 to 50°C (32 to 122°F)
Operating Humidity: Less then 90% RH
| Measurement |
Range |
Resolution |
Accuracy |
| Air Velocity |
0.3 to 35 m/s
(1 to 114 ft/s) |
0.1 |
±5% FS |
| Air Volume |
0 to 99,999 m³/min
(0 to 99,999 ft³/min) |
0.1 |
±5% FS |
| Capacity |
0 to 99,999 BTU/h
(0 to 99,999 kW) |
0.1 |
±3% FS |
| Temperature |
-20 to 60 °C
(-4 to 140°F) |
0.1° |
±0.6°C (1°F) |
| Humidity |
0 to 100% |
0.1% |
±3% FS from 10 to 90%
±5% FS above 90% |
| Dew Point |
-68 to 70°C
(-90 to 158°F) |
0.1° |
±3% FS from 10 to 90%
±5% FS above 90% |
| Wet Bulb |
-22 to 70°C
(-7.6 to 158°F) |
0.1° |
±3% FS from 10 to 90%
±5% FS above 90% |
|
|
|
|
|
|
† Price are shown in RMB.
Note: Comes complete with operators manual, hard case, and four AAA batteries.
Ordering Example: (1) HHF11A 5-digit air velocity indicator, ¥3,420.00
|
|
|
|
|
| |
|
