Handheld Rotating Vane Anemometer |
HHF141 |
|
|
|
|
|
|
|
|
Accurate air velocity measurements
|
|
High Accuracy (±1.0% of Reading)
|
|
Rugged Metal Probe and Vane
|
|
Ultra Low Speed Sensitivity Down to 12.2 m (40')/min
|
|
Measure Airflow in Environments from -20 to 100°C (-4 to 212°F)
|
|
Minimum and Maximum Velocity Capture
|
|
Analog Voltage Output and Communication Options
|
View related products - Anemometers & Wind Tunnels
|
| |
|
|
|

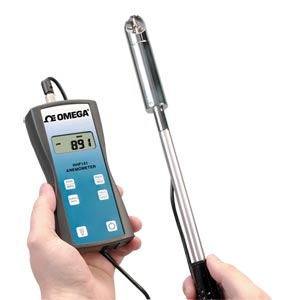

The OMEGA™ HHF141 rotating vane anemometer is a high-quality instrument providing highly accurate air velocity measurements in harsh environments via a user-friendly and intuitive interface. It is suitable to several applications where precise air measurement is required.
Its diagram probe can be ordered with two main variations: the HHF141A Handheld anemometer has a 25 mm (1") diagram probe and the HHF141B Handheld anemometer comes with a 70 mm (2³⁄₄) diagram probe.
Possible Applications:
- Manufacturing
- Laboratory
- Computer rooms
- Environmental Control
- Flow hood monitoring
- Other applications where precise air measurement is required
SPECIFICATIONS
Ranges
HHF141A: 25 mm (1") probe, 300 to 6800 FPM (1.5 to 35.00 MPS)
HHF141B: 70 mm (2-3/4") probe, 40 to 7800 FPM (0.2 to 40.00 MPS)
Accuracy:
2.75" Probes: ±1.0% of reading ±1-digit
1" Probes: ± 0.5% FS +0.75% of reading ±1-digit
Resolution: 1 FPM or 0.01 MPS
Display: 12.7 mm (0.5") LCD, 4-digits, with LED backlight
Operating Temp:
Instrument: 0 to 50°C (32 to 125°F)
Probe: -20 to 100°C (-4 to 210°F)
Power Supply: 3 "AA" alkaline batteries (included)
Battery Life: Approximately 150 hours
Dimensions:
Instrument: 165 x 83 x 38 mm (6.5 x 3.25 x 1.5")
HHF140A: 25 mm (1") diameter head
HHF140B: 70 mm (2.75") diameter head
Cable: 1.5 m (5')
Outputs (Optional): USB or 0 to 5 Vdc analog signal
|
|
|
|
|
|
† Price are shown in RMB.
Note: Comes with NIST certificate (No data points), vane sensor [25 or 70 mm (1 or 2¾") depending on model], 3 extension rods (flexible, straight and with handle), 1.5 m (5') cable, 3 "AA" alkaline batteries, hard carrying case and operator's manual. For units with a protective boot and splash proof seals add "-PB" to the model number and $55 to the price.
Ordering Example: (1) HHF141B-USB Anemometer kit with 70 mm (2¾) diagram probe, ¥13,040.00
|
|
|
|
|
| |
