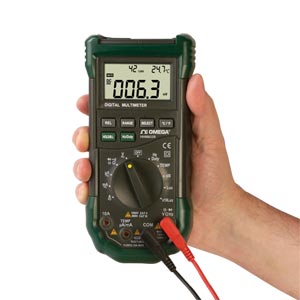

5-in-1 Autorange Digital Multimeter |
| HHM8229 |
|
 |
|
|
|
|
 |
The HHM8229 meter is a portable professional
measuring instrument with large LCD to show three
lines of readings, as well as a backlight for easy
reading. The “single-hand operation” design for the
range switch makes measurement simple and easy.
Overload protection and low battery indication are
provided. This is an ideal multi-function instrument with
scores of practical applications for professional,
workshop, school, hobby and home use.
The meter is devised with light and sound alarm to
prevent misconnection of test leads and provide
additional protection against damages caused by
improper operation. The 5-in-1 digital multi-tester has
been designed to combine the functions of sound level,
luminance, humidity and temperature meters, as well as
a digital multimeter.
The HHM8229 digital multimeter can perform
measurements of AC/DC voltage and current,
resistance, frequency, duty, capacitance, as well as
continuity and diode test. Both the reading and unit of
measurement are displayed on the LCD, and includes
both autorange and manual operation. Auto range and
manual range are both available. The HHM8229 is
equipped with auto power off function, reading hold
function, and relative measurement function.
SPECIFICATIONS
Counts: 4000
DC Voltage: 400 mV/4V/40V/400V/1000V ±(0.7% rdg + 2 dgt)
AC Voltage: 400 mV/4V/40V/400V/750V ±(0.8% rdg + 3 dgt)
DC Current: 400 µA/4000 µA/40 mA/400 mA ±(1.2% rdg + 3 dgt), 2A/20A ±(2.0% rdg + 10 dgt)
AC Current: 400 uA/4000 uA/40 mA/400 mA ±(1.5% rdg + 3 dgt), 2A/20A ±(3.0% rdg + 10 dgt)
Resistance: 400Ω/4 k/40 k/400 k/4 MΩ ±(1.2% rdg + 5 dgt), 40 MΩ ±(2.0% rdg + 5 dgt)
Capacitance: 40 nF/400 nF/4 µF/40 µF/100 uF ±(3% rdg + 3 dgt)
Frequency: 10 Hz/10 Hz/1K Hz/10K Hz/100K Hz ±(2.0% + 5 dgt)
Duty: 0.1 to 99.9% ±3.0% rdg
Sound Level: 40 to 100 dB ±3.5% rdg
Light: 4000 Lux/40000 Lux ±5.0% rdg
Humidity: 20 to 95% RH, ±5.0% RH
Temperature (Built-In Sensor): 0 to 40°C ±2°C (32 to 104°F ±4°F)
Temperature (Type K Thermocouple): -20 to 0°C ±5.0% rdg; 0 to 400°C ±1.0% rdg; 400 to 1000°C ±2.0% rdg; 4 to 32°F ±5.0% rdg; 32 to 752°F ۫.0% rdg; 752 to 1832°F ±2.0% rdg
Continuity Checking: With buzzer Diode Test
Power: Three 1.5V, "AAA" alkaline batteries (included)
Size: 195 L x 92 W x 55 mm D (7.7 x 3.6 x 2.2")
Weight: 400 g (14 oz) (including batteries)
|
|
|
|
|
|
† Price are shown in RMB.
Note: Comes complete with 1 beaded wire Type K thermocouple, multifunction socket adaptor, test leads, rubber boot, three “AAA” alkaline batteries, and operator’s manual.
|
|
|
|
|
| |
|
