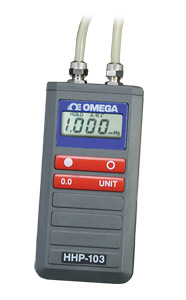

Digital Manometer - Very Low Range |
| HHP-103 |
|
 |
|
|
Digital Manometer, digital manometers
 |
| Click for larger image. |
|
|
|
|
| • |
High Resolution to 0.001 inH2O
|
| • |
Low Range 0 to 1.999 inH2O, High Range 0 to 10.04 inH2O
|
| • |
Rugged, Water- Resistant Case
|
| • |
Measure Differential, Gage, or Vacuum
|
| • |
Selectable Engineering Units
InH2O, mmH2O, mbar, PSI, PA, InHg, mmHg
|
| • |
Accuracy: 0.2% FS of high range
|
| • |
Operating Temp.: -10 to 50°C (15 to 120°F)
|
| • |
Display: 3-1/2-digit, 0.5" (13 mm), backlight, LCD High Contrast
|
| • |
Pressure Port: Tube fitting for 0.155" < ID > 0.195"; OD < 0.24" Tygon or Silicon tubing
|
| • |
Compatible Media: Dry, non-corrosive gases
|
| • |
Power: 9 V battery included (approx. 300 hours operation)
|
| • |
Front Panel Zero Button
|
| • |
Dimensions: 140 H X 70 W X 26 mm D (5.50 x 2.75 X 1.00")
|
| • |
Weight: 250 g (8.8 oz)
|
View related products - Instrumentation for Pressure and Strain Measurements
|
| |
|
|
|
 |
HHP-103 handheld air pressure
manometers are designed for one handed
industrial or laboratory use.
The custom molded case allows this
manometer to withstand continual
heavy use and operation in
industrial or humid environments.
Each unit has a high contrast liquid
crystal display with a backlight
feature, which allows readings to be
seen in all applications.
The manometer can measure
gage or vacuum pressures by venting the low
and high ports to atmosphere,
respectively , as well
as differential pressure. Each unit has a low
and high range, offering greater
resolution and accuracy.
|
|
|
|
|
|
† Price are shown in RMB.
Note: Comes with 9 V battery and complete operator’s manual.
|
|
|
|
|
| |
|
