Handheld Digital Pressure Meter
HHP-90
CE

Handheld Digital Pressure Meter

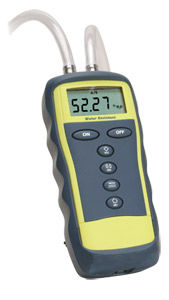

HHP-90:Handheld Digital Pressure Meter
Click for larger image.

• Differential Input with 8 mm Tube Connectors
• Water Resistant, IP67 Rated
• Rugged Case with Protective Rubber Boot
• Magnetic Attachment or Tilt Stand
• Backlit Digital Display
• Push Button Zero and Hold Features
• 8 Selectable Pressure Scales
• Auto Power Off After 12 Minutes

View related products - Instrumentation for Pressure and Strain Measurements

Click to scroll below to order See Specs PDF Manuals View a printer friendly page

OMEGA’s HHP-90 is a rugged handheld instrument ideal for replacement of conventional U-tube manometers. It features high accuracy and resolution, fast response time, and selectable engineering units all at an economical price.

Manufactured from ABS plastic, this water-resistant instrument is supplied with a protective rubber boot to provide added protection. The case has a built in tilt stand and magnetic mounting for ease of use and the back lit LCD display allows easy viewing even in poor light conditions.

SPECIFICATIONS
Accuracy: -10 to 50°C (14 to 122°F), ±0.2% of RDG + 0.2% FS + 1 LSD
Operating Temp.: -10 to 50°C (14 to 122°F) ambient
Compatible Media: Dry, non-corrosive gases
Power: 2 AA batteries, included
Battery Life: 200 hours with low battery indication on display
Units of Measure: inH2O, mmH2O, mbar, PSI, kPa, inHg and mmHg
Pressure Ports: tube connectors for 8 mm I.D. flexible tubing
Dimensions: 155 x 67 x 40 mm (6.1 x 2.6 x 1.6")
Weight: 180 grams (6.4 oz) without protective boot

Please review product pdf for complete details!
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 HHP-90    Consult sales   Handheld digital manometer with rubber boot and magnetic mount
 Accessories
 TYVY-3814-50    Consult sales   15.2 m (50') of vinyl tubing, 3/8" O.D. x 1/4" I.D.
† Price are shown in RMB.

 Note: Comes with batteries, rubber boot, tilt stand and magnetic mount, and complete operator’s manual.
