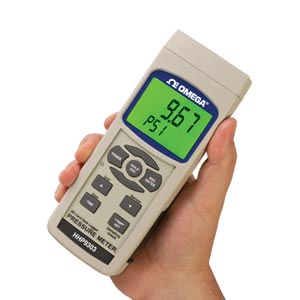

Handheld Pressure Meter and Data Logger with SD Card
HHP9303
1 year warranty CE

Handheld Pressure Meter and Data Logger
HHP9303:Handheld Pressure Meter and Data Logger with SD Card
Click for larger image.

¥ 4,000.00  HHP9303
• 2 GB SD Card Included
• Displays and Datalogs Pressure
• Logs Data on Standard SD Memory Cards, 2 GB Card Included
• Interchangeable Pressure Sensors Available in 8 Ranges
• No Recalibration Necessary When Changing Pressure Ranges
• No Special Software Required, Download Direct to Excel
• Displays in 10 User Selectable Pressure Scales

View related products - Instrumentation for Pressure and Strain Measurements

Click to scroll below to order See Specs PDF Manuals View a printer friendly page

OMEGA’s HHP9303 handheld pressure meter and data logger is suitable for a wide variety of applications. Pressure range is selected by interchangeable remote pressure sensors. Sensors are available in 8 different ranges of 2, 5, 10, 20, 50, 100, 200 and 400 bar.
Recalibration is not required when changing ranges. Pressure can be displayed in one of 10 user selectable pressure scales (bar, psi, Kg/cm2, hPA, kPA, mmHg, inHg, meters H2O, inH2O, Atm).
In addition to displaying real time pressure readings the HHP9303 can log data manually or automatically at any sampling rate from 1 second up to 9 hours. Readings are date and time stamped and stored on standard SD memory cards from 1 to 16 GB storage capacity. A 2 MB SD card in included. The user can remove the card and plug it into a laptop or desktop computer either directly or via a USB card reader. Files are stored with a “.xls” extension so they can be opened with Microsoft Excel without the need for any other software.

SPECIFICATIONS
Accuracy: ±0.5% FS + 1LSD
Operating Temperature: 0 to 50°C (32 to 122°F)
Relative Humidity: 0 to 85%
Display Type: LCD with green backlight
Power: 6 "AA" alkaline batteries (included) or optional 9 Vdc adapter
Pressure Units: bar, psi, Kg/cm2, hPA, kPA, mmHg, inHg, meters H2O, inH2O, atmospheres
Current Draw: 37 mA (add 12 mA if backlight on)
Pressure Media: Clean dry non-corrosive gases
Data Logging Sample Rate: Settable from 1 second to 9 hours
Dimensions: 177 H x 68 W x 45 mm D (6.97 x 2.68 x 1.77")
Meter Weight: 350 g (0.77 lb)
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 HHP9303 2 Weeks   ¥4,000.00    Handheld pressure meter/data logger with 2 GB SD card
 Accessories
 SC-SD 2 Weeks   ¥213.00    Soft carrying case for HHP9303
 HC-SD 2 Weeks   ¥386.00    Hard carrying case for HHP9303
 ADAPTER-SD In Stock   ¥262.00    AC adapter
 Pressure Sensors for HHP9303
 HHPS100-2    Consult sales   Plug-in pressure sensor, 0 to 2 bar (0 to 29 psi)
 HHPS100-5    Consult sales   Plug-in pressure sensor, 0 to 5 bar (0 to 72.5 psi)
 HHPS100-10    Consult sales   Plug-in pressure sensor, 0 to 10 bar (0 to 145 psi)
 HHPS100-20    Consult sales   Plug-in pressure sensor, 0 to 20 bar (0 to 290 psi)
 HHPS100-50    Consult sales   Plug-in pressure sensor, 0 to 50 bar (0 to 725 psi)
 HHPS100-100    Consult sales   Plug-in pressure sensor, 0 to 100 bar (0 to 1450 psi)
 HHPS100-400    Consult sales   Plug-in pressure sensor, 0 to 400 bar (0 to 5800 psi)
† Price are shown in RMB.

 Note: Comes complete with 6 "AA" batteries, 2 GB SD card, and operator's manual. Pressure sensors sold separately.
  Ordering Example: (1) HHP9303 handheld pressure datalogger, ¥4,000.00,  plus (1) SC-SD soft carrying case, ¥213.00, ¥4,000.00 + 213.00 = $4,213.00
