Digital Torque Meter with RS232 Output
 |
| Click for larger image. |
|
|
¥
10,180.00
HHTQ88
|
| • |
Three Selectable Torque Units: kgf-cm, lb-in, N-cm
|
| • |
High and Low Resolution Modes
|
| • |
Fast and Slow Sampling Modes
|
| • |
Auto Shut-Off Extends Battery Life
|
| • |
Reading Hold
|
| • |
Stores Minimum and Maximum Readings with Push-Button Recall
|
| • |
RS232 PC Interface to Load Data into Your Logging or Recording Programs
|
View related products - Load Cells, Force Sensors and Torque Transducers
|
| |
|
|
|
 |

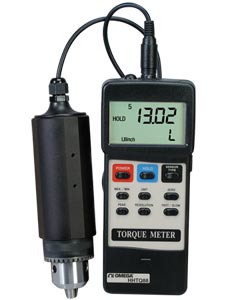

The HHTQ88 is a precision test instrument for automotive, automation,
laboratories, and general industrial applications. The unit comes
complete with the torque sensor with built-in 12 mm (0.5") chuck and
chuck key. Three selectable torque units (kgf-cm, lb-in, N-cm) give this
instrument almost universal compatibility with all measuring systems.
The HHTQ88 also has fast and slow sampling rates to fit most
automation applications. The readings are easy to read, displayed in
large 15 mm (0.6") high digits. The RS232 serial interface allows you
to download data for use in your data logging or recording programs.
SPECIFICATIONS
Units: kgf-cm, lb-in, N-cm (N = Newtons)
Range: Up to 15 kgf-cm
Safe Overload: 150% of range
Functions: Auto off (after approx 20 min),
reading hold, min and max
Accuracy: ±1.5% FS +5 digits, 23 ±5ºC,
includes linearity, repeatabilityand hysteresis
Operating Temperature: 0 to 50ºC (32 to 122ºF)
Operating Humidity:<80% RH (non-condensing)
Sensor Chuck: 12 mm (0.5")
Power: 9 V alkaline battery (included)
Sampling Time:
Fast: Approximately 0.125 sec
Slow:
Approximately 0.334 sec
Data Output: RS232 PC serial output
Meter Dimensions: 180 x 72 x 32 mm (7.1 x 2.8 x 1.3")
Sensor Dimensions: 48 D x 160 mm L (1.9 x 6.3")
Meter Weight: 225 g (0.5 lb)
Sensor Weight: 665 g (1.5 lb)
Sensor Cable: 1 m (39")
|
|
|
|
|
|
† Price are shown in RMB.
Note: Comes complete with battery, meter, torque sensor, chuck key, hard carrying case and operator’s manual.
Ordering Example: (1) HHTQ88 Is a handheld torque meter including sensor and case, ¥10,180.00
|
|
|
|
|
| |
|
