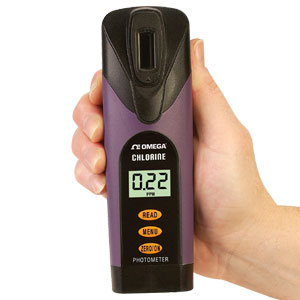

OMEGA’s HHWT-11 is a handheld
photometer designed for direct read testing
water for free and total chlorine. The
HHWT-11 has been designed to offer the
user a more “green” and cost-effective
alternative to testing. Instead of using a
10 ml water sample, it uses a 4 ml water
sample, which uses up to 60% less
chemical per test. The easy to use dip strip
method delivers the reagents to the
sample safely and takes the guesswork out
of water testing. The HHWT-11 also
features a transmission mode which allows
users to develop custom conversion charts
using general tablet and power methods.
Specifications Measurement Method: Photometric Light Source: Light emitting diode (LED) Wavelength: 525 nm Memory: 20 tests per menu; 140 total Programmed Tests: Bromine (DPD-1), Chlorine Dioxide (DPD-1), Free Chlorine (DPD-1), Total Chlorine (DPD-3 and DPD-4), High Range Free Chlorine, Low Range Hydrogen Peroxide, Ozone, and Peracetic Acid (DPD-4) Transmission Range: 100 to 0.00%T Photometric Precision: ±0.1/0.01%T Automatic Range Selection: Displays 0.01 or 0.1 resolution automatically Display: 3-digit customized LCD with annunciators Cell Pathlength: 20 mm (0.78") Sample Required: 4 ml (0.13 oz) Reagent System: Utilizes strip reagent delivery system Operating Temperature Range: 0 to 50°C (32 to 122°F) Power Supply: 4 “AAA” alkaline batteries (included) Battery Life: >2000 tests with alkaline batteries Electromagnetic Compliance (EMC): Emitted Interference–EN 61326; immunity to interference–EN 61326 Waterproof Rating: NEMA 4X (IP67) Weight: 140 g (5 oz) Dimensions: 5 W x 3.5 D x 16.5 cm H (2 x 1.4 x 6.4") Government Compliance: CE and USEPA compliance for free/total chlorine
† Price are shown in RMB.
Note: HHWT-11 comes complete with photometer, mixing cap, cell cleaning brush, 4 "AAA" batteries and operator’s manual.
Test strips sold separately.
Keywords:Dip Strip Photometer, water quality meter, free and total chlorine
