Integral Thermocouple Handle Probes with Custom Measurement Tips
HPS Series with Special Tips

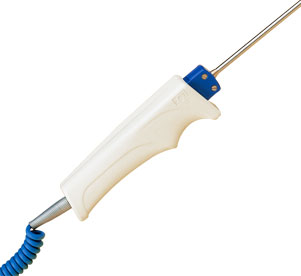

HPS Series with Special Tips:Integral Thermocouple Handle Probes with Custom Measurement Tips
Click for larger image.

¥ 805.00  HPS-NP-K-316G-12-SMP-M
• Penetration Probe
• Fast Response Probe
• Flexible Tip Surface Probe
• Air Probe
• Made from the same material as professional football helmets, these rugged probe handles have endurance designed in to provide long life.

View related products - Thermocouples

Click to scroll below to order See Specs PDF View a printer friendly page

Penetration Probe:(NP)
Tip designed for easy penetration into soft and semi-frozen objects. Made from rugged 304 stainless steel. Tip rated to 900°C (1650°F).

Fast Response Probe:(RT)Special small diameter ( 1/16") tip designed for fast response. Made from 304 stainless steel. Tip rated to 900°C (1600°F).

Flexible Tip Surface Probe:(FSP)Flexible tip which conforms to most surfaces for fast, repeatable, accurate measurements. Made from RTV silicone rubber for good thermal contact. Tip rated to 260°C (500°F). Warning: Subjecting sensor tip to temperatures above 600°F will result in damage to tip. Flexible Tip Surface Probe & Air Probe Available in exposed junction only

Air Probe:(AP)
Radiant energy shield with fine-gage wire thermocouple and 304 stainless steel sheath. Thermocouple tip is exposed to air flow for fast measurements, and the constant diameter design facilitates easy insertion into duct work, grilles and air vents. Tip rated to 870°C (1650°F). Flexible Tip Surface Probe & Air Probe Available in exposed junction only
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 HPS-NP-J-316G-12-SMP-M 2 Weeks   ¥785.00    Penetration Probe, Type J, 3/16" Diameter, Grounded Junction, 12" length
 HPS-NP-K-316G-12-SMP-M 2 Weeks   ¥805.00    Penetration Probe, Type K, 3/16" Diameter, Grounded Junction, 12" length
 HPS-NP-T-316G-12-SMP-M 6 Weeks   ¥770.00    Penetration Probe, Type T, 3/16" Diameter, Grounded Junction, 12" length
 HPS-NP-E-316G-12-SMP-M 6 Weeks   ¥770.00    Penetration Probe, Type E, 3/16" Diameter, Grounded Junction, 12" length
 HPS-RT-J-18G-12 6 Weeks   ¥845.00    Fast Response Probe, Type J, 1/8" Diameter, Grounded junction, 12" Length
 HPS-RT-K-18G-12 6 Weeks   ¥885.00    Fast Response Probe, Type K, 1/8" Diameter, Grounded junction, 12" Length
 HPS-RT-T-18G-12 6 Weeks   ¥865.00    Fast Response Probe, Type T, 1/8" Diameter, Grounded junction, 12" Length
 HPS-RT-E-18G-12 6 Weeks   ¥845.00    Fast Response Probe, Type E, 1/8" Diameter, Grounded junction, 12" Length
 HPS-FSP-J-14E-12 7 Weeks   ¥1,280.00    Flexible Tip Surface probe, Type J, 1/4" Diameter, Exposed Junction, 12" Length
 HPS-FSP-K-14E-12 7 Weeks   ¥1,305.00    Flexible Tip Surface probe, Type K, 1/4" Diameter, Exposed Junction, 12" Length
 HPS-FSP-T-14E-12 2 Weeks   ¥1,305.00    Flexible Tip Surface probe, Type T, 1/4" Diameter, Exposed Junction, 12" Length
 HPS-FSP-E-14E-12 2 Weeks   ¥1,275.00    Flexible Tip Surface probe, Type E, 1/4" Diameter, Exposed Junction, 12" Length
 HPS-AP-J-316E-12 6 Weeks   ¥1,475.00    Air Probe, Type J, 3/16" Diameter, Exposed Junction, 12" Length
 HPS-AP-K-316E-12 6 Weeks   ¥1,475.00    Air Probe, Type K, 3/16" Diameter, Exposed Junction, 12" Length
 HPS-AP-T-316E-12 2 Weeks   ¥1,505.00    Air Probe, Type T, 3/16" Diameter, Exposed Junction, 12" Length
 HPS-AP-E-316E-12 2 Weeks   ¥1,435.00    Air Probe, Type E, 3/16" Diameter, Exposed Junction, 12" Length
† Price are shown in RMB.

 Note: Rated temperature is dependent on thermocouple type, sheath diameter and environment.
  Ordering Example: (1) HPS-NP-K-316G-12-SMP-M Penetration Probe, Type K, 3/16" Diameter, Grounded Junction, 12" length, ¥805.00
