Home >> Heaters Products >> Flexible Heaters >> Tape and Rope Heate... >> HTWAT Series

Heating Tapes with Adjustable Thermostat
HTWAT Series
1 year warranty CE

HTWAT Series:Heating Tapes with Adjustable Thermostat
Click for larger image.

¥ 1,680.00  HTWAT051-002
• Adjustable Thermostat Control Sets Up to 218°C (425°F)
• No Additional Control Needed
• Moisture and Chemical Resistant
• Suitable for Electrically Conductive Surfaces
• Rapid Heat Up

View related products - Flexible Heaters

Click to scroll below to order See Specs PDF Manuals View a printer friendly page

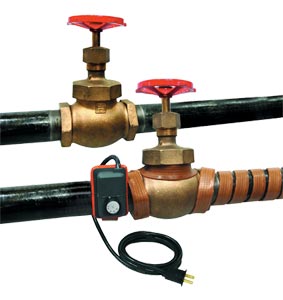

HTWAT Series silicone rubber heat tapes for pipes with thermostat control are designed for process temperature control, freeze protection, and supplemental heat. Applications include valves, pipe lines, bearings, filter housings, actuators and more. Wrap the flexible heating tape around the desired object you want to heat, set the temperature, and it will maintain heat at the set temperature.

SPECIFICATIONS
Adjustable thermostat: 10 to 218°C (50 to 425°F)
Maximum Exposure Temperature: 232°C (450°F)
Nominal Watt Density: 6.0 watts/in V (0.009 watts/mm V)
Minimum Bend Radius: 12.7 mm (0.5")
Outer Sheath: Extruded silicone rubber
Construction: Fiberglass knitted and braided
Power Cord: 1.8 m (6') with plug on 120V models, stripped lead ends on 240V models
Power: 120 or 240 Vac
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 120V Versions
 HTWAT051-002 In Stock   ¥1,680.00    120 Volts, 72 Watts, ½inch x 2ft
 HTWAT051-004 2 Weeks   ¥1,685.00    120 Volts, 144 Watts, ½inch x 4ft
 HTWAT051-006 12 Weeks   ¥1,845.00    120 Volts, 216 Watts, ½inch x 6ft
 HTWAT051-008 12 Weeks   ¥1,960.00    120 Volts, 288 Watts, ½inch x 8ft
 HTWAT051-010 2 Weeks   ¥2,140.00    120 Volts, 360 Watts, ½inch x 10ft
 HTWAT101-002 12 Weeks   ¥1,680.00    120 Volts, 144 Watts, 1inch x 2ft
 HTWAT101-004 2 Weeks   ¥1,780.00    120 Volts, 288 Watts, 1inch x 4ft
 HTWAT101-006 2 Weeks   ¥1,845.00    120 Volts, 432 Watts, 1inch x 6ft
 HTWAT101-008 12 Weeks   ¥1,920.00    120 Volts, 576 Watts, 1inch x 8ft
 HTWAT101-010 2 Weeks   ¥2,140.00    120 Volts, 720 Watts, 1inch x 10ft
 HTWAT201-002 12 Weeks   ¥2,395.00    120 Volts, 288 Watts, 2inch x 2ft
 HTWAT201-004 12 Weeks   ¥2,560.00    120 Volts, 576 Watts, 2inch x 4ft
 HTWAT201-006 12 Weeks   ¥2,735.00    120 Volts, 864 Watts, 2inch x 6ft
 HTWAT201-008 12 Weeks   ¥2,800.00    120 Volts, 1152 Watts, 2inch x 8ft
 HTWAT201-010 12 Weeks   ¥2,965.00    120 Volts, 1440 Watts, 2inch x 10ft
 HTWAT301-004 12 Weeks   ¥2,855.00    120 Volts, 864 Watts, 3inch x 4ft
 HTWAT301-006 12 Weeks   ¥3,020.00    120 Volts, 1296 Watts, 3inch x 6ft
 HTWAT301-008 12 Weeks   ¥3,130.00    120 Volts, 1440 Watts, 3inch x 8ft
 HTWAT301-010 12 Weeks   ¥3,415.00    120 Volts, 1440* Watts, 3inch x 10ft
 240V Versions(supplied without plugs) 240V version is 1800 watts
 HTWAT102-002 12 Weeks   ¥1,645.00    240 Volts, 144 Watts, 1inch x 2ft
 HTWAT102-006 2 Weeks   ¥1,900.00    240 Volts, 432 Watts, 1inch x 6ft
 HTWAT102-008 2 Weeks   ¥2,000.00    240 Volts, 576 Watts, 1inch x 8ft
 HTWAT302-010 12 Weeks   ¥3,350.00    240 Volts, 1440* Watts, 3inch x 10ft
† Price are shown in RMB.

 Ordering Example: (1) HTWAT202-008 Heating tape, 2''x 2', 240V, 1440 watts, with integral adjustable thermostat, ¥2,800.00
