Compact Enclosure Fan Heater
HVL031 Series
1 year warranty CE

DIN Rail Enclosure Heater

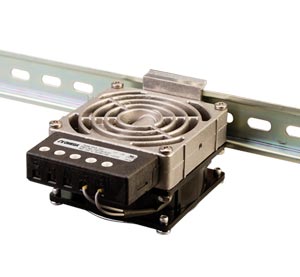

HVL031 Series:Compact Enclosure Fan Heater
Click for larger image.

¥ 2,015.00  HVL03900
• Small, Compact Size Fan Heater
• Built-In Overheat Protection
• DIN Rail Mountable
• Maintains Minimum Operating Temperatures in Enclosures
• Helps to Prevent Failure of Electronic Components Caused by Condensation and Corrosion

View related products - NEMA Electrical Enclosures

Click to scroll below to order See Specs PDF Related Items View a printer friendly page

This compact heater is designed for many different applications including electrical and electronic enclosures, display panels, access and parking control systems and personnel booths.

To determine the required heater size follow this equation:

PH = (A x ΔT x k) - Pv
PH = Required heating power for your application in Watts (W)
Pv = Heating power generated by existing components (e.g. a transformer) in Watts (W)
A = Exposed enclosure surface area square meters (m2)
ΔT = Temperature differential between the desired minimum interior temperature and lowest possible external temperature of the enclosure in Kelvin (K), 1.8°F = 1°C = 1K
k = Heat transmission coefficient of the enclosure material used:
    Stainless Steel: 3.7 W/m2K
    Painted Steel: 5.5 W/m2K
    Aluminum: 12 W/m2K
    Polyester/Plastic: 3.5 W/m2K

For outdoor applications it is recommended to double the heating power.

SPECIFICATIONS
Operating Voltage: 120 Vac
Wattage:
    HVL02900: 100 W
    HVL03900: 150 W
    HVL13900: 200 W
    HVL14900: 300 W
    HVL15900: 400 W
Heating Element: Resistance type cartridge heater
Heat Sink: Die-cast aluminum, glass bead finish
Required Fan Size (Included):
    100/150 W: 80 x 80 x 25 mm (3.1 x 3.1 x 0.98")
    Min Air Flow: 35 m3/h (115 ft3/h) (20 cfm)
    200/300/400 W: 120 x 120 x 25 mm (4.7 x 4.7 x 0.98")
Min Air Flow: 108 m3/h (354 ft3/h) (63 cfm)
Overheat Protection: Built-in temperature limiter
Air Exit Temperature: Approx. 45°C (113°F) 50 mm (2") above heater
Wiring Compartment: Plastic UL 94V-O
Connection (Heater): 3-pole terminal, AWG 14 max [2.5 mm2 (0.10 in2)]
Connection (Axial Fan): 2-pole terminal (L2/N2), AWG 14 max [2.5 mm2 (0.10 in2)]
Mounting: Clip for 35 mm (1.4") DIN rail (EN 50022)
Protection Class: I (grounded)
Protection Type: NEMA 2 (IP20)
Weight (with Fan):
    100/150 W: 600 g (1.3 lb)
    200/300/400 W: 900 g (2.0 lb)
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 HVL02900 5 Weeks   ¥2,055.00    Fan heater, 100 W, 120 Vac
 HVL03900 2 Weeks   ¥2,015.00    Fan heater, 150 W, 120 Vac
 HVL13900 2 Weeks   ¥2,275.00    Fan heater, 200 W, 120 Vac
 HVL14900 2 Weeks   ¥2,205.00    Fan heater, 300 W, 120 Vac
 HVL15900 9 Weeks   ¥2,030.00    Fan heater, 400 W, 120 Vac
† Price are shown in RMB.

 Note: Comes with complete operator’s manual, mounting kit and axial fan.
  Ordering Example: (1) HVL02900 Fan heater, 100 W, ¥2,055.00
