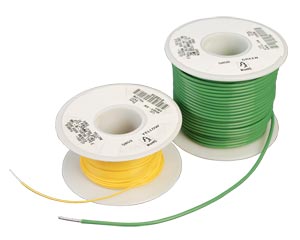

The HW5800 Series Hook-Up Wire is a 600 Volt rated single conductor wire with MIL-W-16878E (Type ET) rating, and is ROHS compliant. It is silver plated copper to minimize oxidation and is available as solid or stranded in multiple colors. This PTFE insulated wire can be used in military harnessing, medical electronics, power lead supply and appliance wire applications, where point to point wiring is required.
Omega has hundreds of different types of Hook-Up Wire in assorted gauges and colors, solid or stranded conductors, 100 and 1000 foot spools, many for immediate delivery.
MIL-W-16878E (TYPE E), 200°C (392°F)/600V UL 1213, 105°C (221°F)/VOLTAGE NOT SPECIFIED ROHS COMPLIANT
MODEL NO.
AWG NO.
WIRE TYPE
INSULATION THICKNESS mm (in)
NOMINAL OD mm (in)
HW5851-(*)-(**)
30
7/38
0.25 (0.010)
0.81 (0.032)
HW5852-(*)-(**)
28
7/36
0.25 (0.010)
0.91 (0.036)
HW5853-(*)-(**)
26
7/34
0.25 (0.010)
1.02 (0.040)
HW5854-(*)-(**)
24
19/36
0.25 (0.010)
1.09 (0.043)
HW5854/7-(*)-(**)
24
7/32
0.25 (0.010)
1.12 (0.044)
HW5855-(*)-(**)
22
19/34
0.25 (0.010)
1.30 (0.051)
HW5855/7-(*)-(**)
22
7/30
0.25 (0.010)
1.40 (0.055)
HW5856-(*)-(**)
20
19/32
0.25 (0.010)
1.50 (0.059)
HW5856/7-(*)-(**)
20
7/28
0.25 (0.010)
1.47 (0.058)
HW5857-(*)-(**)
18
19/30
0.25 (0.010)
1.78 (0.070)
HW5858-(*)-(**)
16
19/29
0.25 (0.010)
1.96 (0.077)
HW2853/1-(*)-(**)
26
Solid
0.25 (0.010)
0.91 (0.036)
HW2854/1-(*)-(**)
24
Solid
0.25 (0.010)
1.02 (0.040)
HW2855/1-(*)-(**)
22
Solid
0.25 (0.010)
1.14 (0.045)
* Specify color by entering color code from the chart. ** Specify Length "-100" or "-1000".
Color Chart
1
White
2
Black
3
Red
4
Green
5
Yellow
6
Blue
7
Brown
8
Orange
9
Gray
10
Violet
† Price are shown in RMB.
Part Number Builder
Option Descriptions
(1)
Wire Size and Type
Select 5851 for 30 awg - 7/38 hook up wire 5852 for 28 awg - 7/36 hook up wire 5853 for 26 awg - 7/34 hook up wire 5854 for 24 awg - 19/36 hook up wire 5854/7 for 24 awg - 7/32 hook up wire 5855 for 22 awg - 19/34 hook up wire 5855/7 for 22 awg - 7/30 hook up wire 5856 for 20 awg - 19/32 hook up wire 5856/7 for 20 awg - 7/28 hook up wire 5857 for 18 awg - 19/30 hook up wire 5858 for 16 awg - 19/29 hook up wire 2853/1 for 26 awg - Solid hook up wire 2854/1 for 24 awg - Solid hook up wire 2855/1 for 22 awg - Solid hook up wire
(2)
Color
Select 1 for white 2 for black 3 for red 4 for green 5 for yellow 6 for blue 7 for brown 8 for orange 9 for gray 10 for violet
(3)
Length
Select 100 for 100 feet 1000 for 1000 feet
NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
