Hook Up Wire Irradiated PVC Insulation preffered wire for soldering applications; abrasion and cut resistant, used in military harnessing, medical electronics and power lead supply.

HW7000 Series

Hook-Up Wire

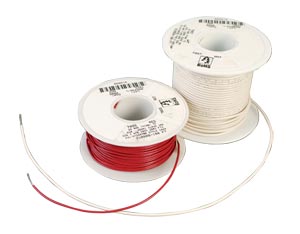

Click for larger image.

•	Operating Temperature: - 55 to 105°C (-67 to 221°F) - UL AWM 1430 - 55 to 105°C (-67 to 221°F) - UL AWM 3317 - 55 to 105°C (-67 to 221°F) - CSA AWM I A/B FT1 - 55 to 105°C (-67 to 221°F) - MIL-W-16878E - 55 to 80°C (-67 to 176°F) - UL AWM 1429
•	600V (MIL), 150V (UL, CSA)
•	1000V (MIL), 300V (UL, CSA)
•	Stranded Tinned Copper Conductor
•	Color-Coded, Irradiated PVC (XLPVC) Insulation
View related products - Wire: Thermocouple, RTD, Thermistor and Hook-Up

The HW7000 Series Hook-Up Wire is a "tougher" version of PVC insulation, irradiated PVC (exposed to electron beam radiation) has better abrasion and cut resistance than ordinary PVC and can be used more readily in soldering applications. It is ROHS compliant and is tinned copper to minimize oxidation, and is available in multiple colors. This IR PVC insulated wire can be used in military harnessing, medical electronics, power lead supply and appliance wire applications, where point to point wiring is required.

Omega has hundreds of different types of Hook-Up Wire in assorted gauges and colors, solid or stranded conductors, 100 and 1000 foot spools, many for immediate delivery.

Hook-Up Wire 250V PTFE Insulation

Hook-Up Wire 300V PVC Insulation – UL AWM 1007 & 1569

Hook-Up Wire 600V PTFE Insulation –UL AWM Style 1213

SPECIFICATIONS
UL AWM Style 1429
UL AWM Style 1430
UL AWM Style 3317
CSA AWM I A/B FT1
CSA REW XLPVC FT1
MIL-W-16878E, Type B
MIL-W-16878E, Type C

MODEL NO.	AWG NO.	WIRE TYPE	INSULATION THICKNESS mm (in)	NOMINAL OD mm (in)
MIL-W16878E TYPE B: 105°C (221°F), 600V CSA AWM I A/B FT1: 105°C (221°F), 150V UL 1429: 80°C (176°F), 150V
HW7053-()-(*)	26	7/34	0.25 (0.010)	1.02 (0.040)
HW7054-()-(*)	24	7/32	0.25 (0.010)	1.14 (0.045)
HW7054/19-()-(*)	24	19/36	0.25 (0.010)	1.14 (0.045)
HW7055-()-(*)	22	7/30	0.25 (0.010)	1.30 (0.051)
HW7055/19-()-(*)	22	19/34	0.25 (0.010)	1.32 (0.052)
HW7056-()-(*)	20	7/28	0.25 (0.010)	1.50 (0.059)
HW7056/19-()-(*)	20	19/32	0.25 (0.010)	1.52 (0.060)
HW7057-()-(*)	18	7/26	0.25 (0.010)	1.78 (0.070)
HW7057/19-()-(*)	18	19/30	0.25 (0.010)	1.78 (0.070)
HW7058/19()-(*)	16	19/29	0.25 (0.010)	1.98 (0.078)
MIL-W-16878E TYPE C: 105°C (221°F), 1000V UL 1430, CSA REW XLPVC: 105°C (221°F), 300V
HW7130-()-(*)	24	7/32	0.41 (0.016)	1.42 (0.056)
HW7131-()-(*)	22	7/30	0.41 (0.016)	1.57 (0.062)
HW7132-()-(*)	20	7/28	0.41 (0.016)	1.78 (0.070)
HW7133-()-(*)	18	7/26	0.41 (0.016)	2.08 (0.082)
HW7134-()-(*)	16	19/29	0.41 (0.016)	2.34 (0.092)

* Specify Color by entering color code from the chart.
** Specify Length “-100” or “-1000”.

COLOR CHART
1	White	7	Brown
2	Black	8	Orange
3	Red	9	Gray
4	Green	10	Violet
5	Yellow
6	Blue

Order on www.omegaengineering.cn and 5% will be discounted when you checkout.

To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping

Part Number	Availability	Price(RMB)	Description	Qty.

Examples of typical part numbers for wire is shown in this Ordering Box. Please use the Part Number Builder below to specify your actual wire part number


MIL-W16878E TYPE B: 105°C (221°F), 600V CSA AWM I A/B FT1: 105°C (221°F), 150V UL 1429: 80°C (176°F), 150V

HW7053-1-100		Consult sales	White Irradiated PVC insulation hook up wire , 100 ft	qty.

HW7055-3-1000		Consult sales	Red Irradiated PVC insulation hook up wire, 1000 ft	qty.

HW7054-4-1000		Consult sales	Green Irradiated PVC insulation hook up wire, 1000 ft	qty.

HW7055/19-5-100		Consult sales	Yellow Irradiated PVC insulation hook up wire, 100 ft	qty.


MIL-W-16878E TYPE C: 105°C (221°F), 1000V UL 1430, CSA REW XLPVC: 105°C (221°F), 300V

HW7131-2-100		Consult sales	Black Irradiated PVC insulation hook up wire, 100 ft	qty.

HW7134-7-1000		Consult sales	Brown Irradiated PVC insulation hook up wire, 1000 ft	qty.

† Price are shown in RMB.

Part Number Builder

	(1)	(2)		(3)		(4)
H H W W			- -		- -
Qty:

Option Descriptions

(1)

Type

Select
70 for Type B
71 for Type C

(2)

Wire Size and Type

Select
53 for 26 awg - 7/34 hook up wire
54 for 24 awg - 7/32 hook up wire
54/19 for 24 awg - 19/36 hook up wire
55 for 22 awg - 7/30 hook up wire
55/19 for 22 awg - 19/34 hook up wire
56 for 20 awg - 7/28 hook up wire
56/19 for 20 awg - 19/32 hook up wire
57 for 18 awg - 7/26 hook up wire
57/19 for 18 awg - 19/30 hook up wire
58/19 for 16 awg - 19/29 hook up wire
30 for 24 awg - 7/32 hook up wire
31 for 22 awg - 7/30 hook up wire
32 for 20 awg - 7/28 hook up wire
33 for 18 awg - 7/26 hook up wire
34 for 16 awg - 19/29 hook up wire

(3)

Color

Select
1 for White
2 for Black
3 for Red
4 for Green
5 for Yellow
6 for Blue
7 for Brown
8 for Orange
9 for Gray
10 for Violet

(4)

Length

Select
100 for 100 ft
1000 for 1000 ft

NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
