Quick Connect Surface Thermocouple Probes with Miniature Connectors, Retractable Cable and Utility Handle
HYP5, SMP-NP, SMP-RT, SMP-AP, SMP-HT and 88000-RSC

HYP5, SMP-NP, SMP-RT, SMP-AP, SMP-HT and 88000-RSC:Quick Connect Surface Thermocouple Probes with Miniature Connectors, Retractable Cable and Utility Handle
Click for larger image.

• Various Probe Styles Available
• J, K, T and E Calibrations Available
• Fast Interchangeability
• Made from Special Limits of Error Material
• 0.3 m (1') Retractable Cable Stretches to 1.5 m (5')
• Penetration and Surface Measurement Styles Available
• Easy to Use Quick Change Handle Design with Retractable Cord
• Also Available as a Complete Kit

View related products - Thermocouples

Click to scroll below to order See Specs PDF View a printer friendly page

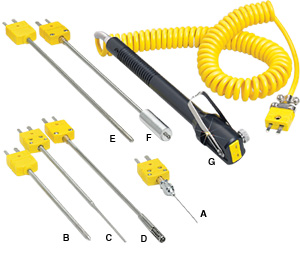

Code  Model  Description
A HYP5 Series Hypodermic probe intended to be used for laboratory, industrial and natural science uses. Tip rated to 200°C
B SMP-NP Penetration probe conical tip designed for penetration into semi-frozen objects. Tip rated to 925°C;
C SMP-RT Reduced tip fast response probe. 1/8 to 1/16 inch diameter at tip. Tip rated to 925°C
D SMP-AP Air probe;drilled end exposes bead to air flow for fast measurements. Tip rated to 260°C
E (*)MQSS-125-G-6 General purpose immersion probe. 1/8 inch diameter, 304SS Tip rated to 260°C
F SMP-HT Series Ceramic tip probe feature as spring loaded thermocouple to insure consistent readings, 304SS housing, 31.8mm long tip rated to 650°C
G 88000 Series Quick-connect handle with integral locking mechanism secures any miniature probe handle in use.
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 HYP5-21-1-1/2-K-G-SMPW 5 Weeks   ¥1,010.00    Hypodermic probe(style A), K type thermocouple
 HYP5-21-1-1/2-J-G-SMPW 2 Weeks   ¥1,160.00    Hypodermic probe(style A), J type thermocouple
 HYP5-21-1-1/2-T-G-SMPW 5 Weeks   ¥1,010.00    Hypodermic probe(style A), T type thermocouple
 HYP5-21-1-1/2-E-G-SMPW 5 Weeks   ¥1,010.00    Hypodermic probe(style A), E type thermocouple
 SMP-NP-K-125G-6 2 Weeks   ¥640.00    Penetration probe(style B), K type thermocouple
 SMP-NP-J-125G-6    Consult sales   Penetration probe(style B), J type thermocouple
 SMP-NP-T-125G-6 6 Weeks   ¥625.00    Penetration probe(style B), T type thermocouple
 SMP-NP-E-125G-6    Consult sales   Penetration probe(style B) , E type thermocouple
 SMP-RT-K-125G-6 2 Weeks   ¥790.00    Reduced tip fast response probe(style C), K type thermocouple
 SMP-RT-J-125G-6 6 Weeks   ¥835.00    Reduced tip fast response probe(style C), J type thermocouple
 SMP-RT-T-125G-6 2 Weeks   ¥820.00    Reduced tip fast response probe(style C), T type thermocouple
 SMP-RT-E-125G-6    Consult sales   Reduced tip fast response probe(style C), E type thermocouple
 SMP-AP-K-125E-6 In Stock   ¥1,030.00    Air probe(style D), K type thermocouple
 SMP-AP-J-125E-6 6 Weeks   ¥1,020.00    Air probe(style D), J type thermocouple
 SMP-AP-T-125E-6    Consult sales   Air probe(style D), T type thermocouple
 SMP-AP-E-125E-6 6 Weeks   ¥1,000.00    Air probe(style D), E type thermocouple
 KMQSS-125G-6 In Stock   ¥505.00    General purpose immersion probe(style E), K type thermocouple
 JMQSS-125G-6 2 Weeks   ¥535.00    General purpose immersion probe(style E), J type thermocouple
 TMQSS-125G-6 2 Weeks   ¥710.00    General purpose immersion probe(style E), T type thermocouple
 EMQSS-125G-6 2 Weeks   ¥535.00    General purpose immersion probe(style E), E type thermocouple
 SMP-HT-K-6 6 Weeks   ¥1,030.00    Ceramic tip probe(style F), K type thermocouple
 SMP-HT-J-6 6 Weeks   ¥1,000.00    Ceramic tip probe(style F), J type thermocouple
 SMP-HT-E-6 6 Weeks   ¥965.00    Ceramic tip probe(style F), E type thermocouple
 88000-K-RSC-SMPW-M 6 Weeks   ¥465.00    Quick-connect handle with integral locking mechanism(style G), K type thermocouple
 88000-J-RSC-SMPW-M 6 Weeks   ¥465.00    Quick-connect handle with integral locking mechanism(style G), J type thermocouple
 88000-T-RSC-SMPW-M    Consult sales   Quick-connect handle with integral locking mechanism(style G), T type thermocouple
 88000-E-RSC-SMPW-M    Consult sales   Quick-connect handle with integral locking mechanism(style G) ,E type thermocouple
 TK-3-K 6 Weeks   ¥6,325.00    Quick-connect probe kit, includes all styles shown A-G, type K thermocouple
 TK-3-J 6 Weeks   ¥4,395.00    Quick-connect probe kit, includes all styles shown A-G, type J thermocouple
 TK-3-E 6 Weeks   ¥4,395.00    Quick-connect probe kit, includes all styles shown A-G, type E thermocouple
† Price are shown in RMB.
