Dual Element Thermocouple probe w/ Standard Size Connector |
| (*)XL or SS Series and (*)IN Dual Element |
|
 |
|
|
|
|
|
¥
970.00
ICIN-116E-12-DUAL
|
| • |
Two Sensor Readings Allows Two Readings of a Single Point
|
| • |
Continuous Monitor and Control & Built-in Backup
|
| • |
Made from Special Limits of Error Material
|
| • |
Glass Filled Nylon Connector Rated to 180°C (356°F)
|
| • |
12" Length Standard
|
| • |
1/16, 1/8, 3/16 and 1/4" Diameters Available
|
| • |
Omegaclad XL , SS or Inconel Sheath
|
| • |

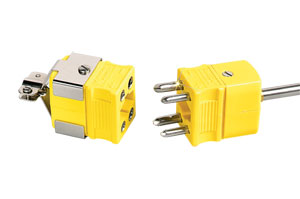

DTC Type Dual Connector— Mating Connector Sold Separately
|
View related products - Thermocouples
|
| |
|
|
|
 |
OMEGA™ dual-element thermocouple assemblies are manufactured using 4-conductor OMEGACLAD™ wire, and feature rugged DTC connector terminations. Either 304 SS or Inconel sheaths are available in sizes from 1/16 to 1/4" O.D., with either grounded, ungrounded or exposed junctions. Standard length is 12", with other lengths available.
Addtional standard size Dual TC connector plugs and jacks are detailed on page G-12 of the Omega Temperature Handbook
Thermocouple
Alloy | Sheath Dia.
mm (in.) | Grounded
Junction | Ungrounded
Junction | Exposed
Junction |
J
IRON-CONSTANTAN
Inconel Sheath | 1.5 (1/16")
3.0 (1/8")
4.5 (3/16")
6.0 (1/4") | ICIN-116G-12-DUAL
ICIN-18G-12-DUAL
ICIN-316G-12-DUAL
ICIN-14G-12-DUAL | ICIN-116U-12-DUAL
ICIN-18U-12-DUAL
ICIN-316U-12-DUAL
ICIN-14U-12-DUAL | ICIN-116E-12-DUAL
ICIN-18E-12-DUAL
ICIN-316E-12-DUAL
ICIN-14E-12-DUAL |
J
IRON-CONSTANTAN
304 SS Sheath | 1.5 (1/16")
3.0 (1/8")
4.5 (3/16")
6.0 (1/4") | ICSS-116G-12-DUAL
ICSS-18G-12-DUAL
ICSS-316G-12-DUAL
ICSS-14G-12-DUAL | ICSS-116U-12-DUAL
ICSS-18U-12-DUAL
ICSS-316U-12-DUAL
ICSS-14U-12-DUAL | ICSS-116E-12-DUAL
ICSS-18E-12-DUAL
ICSS-316E-12-DUAL
ICSS-14E-12-DUAL |
K
CHROMEGA™-ALOMEGA™
Inconel Sheath | 1.5 (1/16")
3.0 (1/8")
4.5 (3/16")
6.0 (1/4") | CAIN-116G-12-DUAL
CAIN-18G-12-DUAL
CAIN-316G-12-DUAL
CAIN-14G-12-DUAL | CAIN-116U-12-DUAL
CAIN-18U-12-DUAL
CAIN-316U-12-DUAL
CAIN-14U-12-DUAL | CAIN-116E-12-DUAL
CAIN-18E-12-DUAL
CAIN-316E-12-DUAL
CAIN-14E-12-DUAL |
K
CHROMEGA™-ALOMEGA™
304 SS Sheath | 1.5 (1/16")
3.0 (1/8")
4.5 (3/16")
6.0 (1/4") | CASS-116G-12-DUAL
CASS-18G-12-DUAL
CASS-316G-12-DUAL
CASS-14G-12-DUAL | CASS-116U-12-DUAL
CASS-18U-12-DUAL
CASS-316U-12-DUAL
CASS-14U-12-DUAL | CASS-116E-12-DUAL
CASS-18E-12-DUAL
CASS-316E-12-DUAL
CASS-14E-12-DUAL |
E
CHROMEGA™-CONSTANTAN
Inconel Sheath | 1.5 (1/16")
3.0 (1/8")
4.5 (3/16")
6.0 (1/4") | CXIN-116G-12-DUAL
CXIN-18G-12-DUAL
CXIN-316G-12-DUAL
CXIN-14G-12-DUAL | CXIN-116U-12-DUAL
CXIN-18U-12-DUAL
CXIN-316U-12-DUAL
CXIN-14U-12-DUAL | CXIN-116E-12-DUAL
CXIN-18E-12-DUAL
CXIN-316E-12-DUAL
CXIN-14E-12-DUAL |
E
CHROMEGA™-CONSTANTAN
304 SS Sheath | 1.5 (1/16")
3.0 (1/8")
4.5 (3/16")
6.0 (1/4") | CXSS-116G-12-DUAL
CXSS-18G-12-DUAL
CXSS-316G-12-DUAL
CXSS-14G-12-DUAL | CXSS-116U-12-DUAL
CXSS-18U-12-DUAL
CXSS-316U-12-DUAL
CXSS-14U-12-DUAL | CXSS-116E-12-DUAL
CXSS-18E-12-DUAL
CXSS-316E-12-DUAL
CXSS-14E-12-DUAL |
T
COPPER-CONSTANTAN
Inconel Sheath | 1.5 (1/16")
3.0 (1/8")
4.5 (3/16")
6.0 (1/4") | CPIN-116G-12-DUAL
CPIN-18G-12-DUAL
CPIN-316G-12-DUAL
CPIN-14G-12-DUAL | CPIN-116U-12-DUAL
CPIN-18U-12-DUAL
CPIN-316U-12-DUAL
CPIN-14U-12-DUAL | CPIN-116E-12-DUAL
CPIN-18E-12-DUAL
CPIN-316E-12-DUAL
CPIN-14E-12-DUAL |
T
COPPER-CONSTANTAN
304 SS Sheath | 1.5 (1/16")
3.0 (1/8")
4.5 (3/16")
6.0 (1/4") | CPSS-116G-12-DUAL
CPSS-18G-12-DUAL
CPSS-316G-12-DUAL
CPSS-14G-12-DUAL | CPSS-116U-12-DUAL
CPSS-18U-12-DUAL
CPSS-316U-12-DUAL
CPSS-14U-12-DUAL | CPSS-116E-12-DUAL
CPSS-18E-12-DUAL
CPSS-316E-12-DUAL
CPSS-14E-12-DUAL |
Click here for help in selecting the thermocouple junction.
View the Thermocouple Accuracy and Color Code charts
|
|
|
|
|
|
† Price are shown in RMB.
Note: To order with 321 stainless steel sheath, change "SS" in model no. to "321SS"
PFA Coating is available, 205°C (400°F) Max.
To order Super OMEGACLAD™ XL sheath, change “N” in Model Number to “XL” and add $3 to price. Note: PFA coating is available, 205°C (400°F) max. Custom connector types available, consult custom engineering.
Ordering Example: (1) CAIN-116U-12-DUAL Dual-element probe, type K, Inconel sheath, 1/16 Inch, Ungrounded, 12 Inch Length, ¥990.00
|
|
|
|
|
|
|
|
|
Part Number Builder |
|
|
|
|
|
|
|
|
Option Descriptions
|
|
(1)
|
Thermocouple Type
|
| |
Select
IC for Type J
CA for Type K
CX for Type E
CP for Type T
NN for Type N
|
(2)
|
Sheath Material
|
| |
Select
IN for Inconel
SS for 304 Stainless steel
XL for Super Omegaclad (Type K and N only)
|
(3)
|
Sheath Diameter
|
| |
Select
116 for 1/16 Inch
18 for 1/8 Inch
316 for 3/16 Inch
14 for 1/4 Inch
|
(4)
|
Thermocouple Junction
|
| |
Select
G for Grounded
U for Ungrounded
E for Exposed
|
(5)
|
Probe Length
|
| |
Select
12 for 12 Inches
CUSTOM for custom length in inches(whole number only up to 120 inches max)
|
|
NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
|
| | | |
|
|
|
|
|
|
| |
|
