Home >> Heaters Products >> Immersion Heaters >> Over-the Side Immers... >> KBLC & KBLS Series

Over-the-side Immersion Heaters for Drum Heating - Discontinued
KBLC & KBLS Series

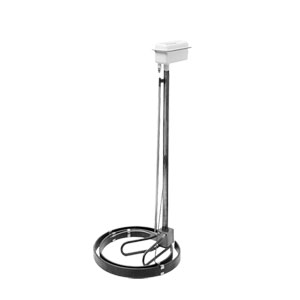

KBLC & KBLS Series:Over-the-side Immersion Heaters for Drum Heating - Discontinued
Click for larger image.

• Low Watt Density: 11 W/in2
• Moisture Resistant Terminal Enclosure
• Rugged Steel or Stainless Steel Sheathed Elements
• 2. 2 and 4.4 kW, 240 V, 1 Phase
• Built-in Thermostat on Most Models
• APPLICATIONS
• Melting Wax
• Melting Lard
• Melting Grease
• Melting Coconut Oil and Other Heat Sensitive Materials.

View related products - Immersion Heaters

Click to scroll below to order See Specs PDF View a printer friendly page

The KBLC and KBLS Series has been discontinued. Please see the TLO and KTLO Series as a possible alternative or contact our Temperature Engineering department.

FEATURES
Light weight and easy to use. Heater is set atop the mass and then melts its way to the bottom. Steel terminal housing protected by acid and heat resistant paint. Standard with built-in controls on most models.

Three temperature ranges:
• T1 — 0 to 100°F
• T2 — 60 to 250°F
• T3 — 200 to 550°F



kW Volts W/in2 Dimension In. AR Thermostat
Range °F		 Model No. Wt.
lb.
Riser
In. (A)		 Min. Tank
Clearance (B)
KBLC Series — Steel Sheath and Riser
2.2240113612 3/4—KBLC-2414
2.2240113612 3/460 to 250°FKBLC-24T214
2.2240113612 3/4200 to 550°FKBLC-24T314
4.4240113617 3/4—KBLC-2818
4.4240113617 3/460 to 250°FKBLC-28T218
4.4240113617 3/4200 to 550°FKBLC-28T318
KBLS Series — Stainless Steel Sheath and Riser
2.2240113612 3/4—KBLS-24414
2.2240113612 3/40-100°FKBLS-244T114
2.2240113612 3/460 to 250°FKBLS-244T214
2.2240113612 3/4200 to 550°FKBLS-244T314
4.4240113617 3/4—KBLS-28818
4.4240113617 3/40-100°FKBLS-288T118
4.4240113617 3/460 to 250°FKBLS-288T218
4.4240113617 3/4200 to 550°FKBLS-288T318
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 KBLC-28T2    Consult sales   Protable drum heater, 240 V, 4.4 KW, 1phase, Steel
 KBLS-288T2    Consult sales   Protable drum heater, 240 V, 4.4 KW,1phase,SS
† Price are shown in RMB.
