Subminiature Compression Load Cell | 1kg to 1,000 lb
LCKD

Subminiature Industrial Load Cell
LCKD:Subminiature Compression Load Cell | 1kg to 1,000 lb
Click for larger image.

¥ 7,260.00  LCKD-5
• 5-Pt NIST Traceable Calibration Included
• Rugged All Stainless Steel Construction
• Temperature compensation
• Miniature Size, Low Profile
• Ranges from 1 kg to 1000 lb
• In-Line Field Calibratable USB Output Amplifier Now Available

View related products - Load Cells, Force Sensors and Torque Transducers

Click to scroll below to order See Specs PDF Manuals Related Items View a printer friendly page

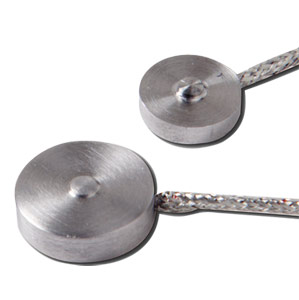

Small in size but not in performance, OMEGA’s LCKD Series subminiature compression load cells are designed to measure load ranges from 1 kg to 1000 lb. Rugged all stainless steel construction and high performance strain gages assure superior linearity and stability. All models include a 5-pt NIST traceable calibration to assure an accurate installation.
Temperature compensation is achieved through a miniature circuit board which is included in the load cell’s cable. These units are designed to be mounted on a smooth, flat surface.

The LCKD is also available in metric configurations, with ranges from 0-10 to 0-5,000 N. Please see the LCMKD in related items below for complete details, or contact our Pressure department for more information..

SPECIFICATIONS
Excitation: 5 Vdc, 7 Vdc max
Output: 2 mV/V nominal
5-Point Calibration: 0%, 50%, 100%, 50%, 0%
Linearity: ±0.25% FSO
Hysteresis: ±0.25% FSO
Repeatability: ±0.10% FSO
Zero Balance: ±2% FSO
Operating Temp Range: -54 to 121°C (-65 to 250°F)
Compensated Temp Range: 16 to 71°C (60 to 160°F)
Thermal Effects:
    Span: ±0.018% FSO/°C
    Zero: ±0.009% FSO/°C
Safe Overload: 150% of capacity
Ultimate Overload: 300% of capacity
Bridge Resistance: 350 Ω min
Full Scale Deflection: 0.001 to 0.003"
Electrical Connection: 1.5 m (5') 4-conductor insulated cable with temperature compensation board
Weight: <14 g (<0.5 oz)
Protection Class: IP54
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 LCKD-1KG In Stock   ¥7,660.00    0 - 1 KG Range Load Cell
 LCKD-5 2 Weeks   ¥7,260.00    0 - 5 LB Range Load Cell
 LCKD-10 17 Weeks   ¥7,260.00    0 - 10 LB Range Load Cell
 LCKD-25 17 Weeks   ¥7,260.00    0 - 25 LB Range Load Cell
 LCKD-50 In Stock   ¥7,260.00    0 - 50 LB Range Load Cell
 LCKD-100 In Stock   ¥7,670.00    0 - 100 LB Range Load Cell
 LCKD-250 In Stock   ¥7,260.00    0 - 250 LB Range Load Cell
 LCKD-500 17 Weeks   ¥7,260.00    0 - 500 LB Range Load Cell
 LCKD-1000 2 Weeks   ¥7,260.00    0 - 1000 LB Range Load Cell
 ACCESSORIES - Compatible Panel Meters and Signal Conditioners
 DP8PT In Stock   ¥2,815.00    1/8 DIN 4-digit Platinum Series input meter (Ratiometric Voltage and Current) with excitation, basic unit. Please see Platinum Series for pricing and availability of full range of Platinum Series meters. Use Part Number Builder to see all options.
 DP25B-S 2 Weeks   ¥3,525.00    1/8 DIN 4-digit DPiS strain gage meter with 90-240 Vac/dc power. Please see DP25B-S for pricing and availability of full range of DP25B-S meters. Use Part Number Builder to see all options.
 DP8EPT In Stock   ¥3,735.00    1/8 DIN 6-Digit display meter with USB communications. Please see Platinum Series for pricing and availability of full range of Platinum Series meters. Use Part Number Builder to see all options.
 DP41-B    Consult sales   1/8 DIN 6-Digit strain meter with excitation. Please see DP41-B for pricing and availability of full range of DP41-B meters. Use Part Number Builder to see all options.
 IN-USBH 20 Weeks   ¥5,115.00    Field Calibratable USB Signal Conditioner - add digital USB output to mV/V pressure or load transducers. (see IN-USBH)
 IN-UVI 2 Weeks   ¥16,155.00    Wheatstone Bridge In-Line Signal Conditioner - converts the millivolt signal of the transducer to 0 to 5, 0 to 10, ±5, ±10 Vdc or 4 to 20, 12 ± 8 mA. (see IN-UVI)
† Price are shown in RMB.

 Note: Comes complete with 5-point NIST-traceable calibration and 59 kO shunt data.
  Ordering Example: (1) LCKD-1KG 0 - 1 KG Range Load Cell, ¥7,660.00
