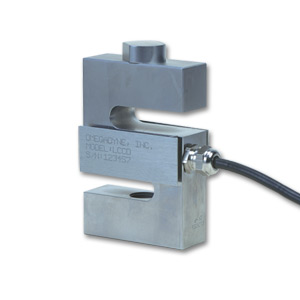

The LCMCD is also available in standard configurations, with 0-25 to 0-20,000 lb ranges and standard threads.Please see the LCCD for complete details, or contact our Pressure department for more information.
SPECIFICATIONS Excitation: 10 Vdc (15 Vdc maximum) Output: 3.0 mV/V ±0.25% Linearity: 0.03% FS Hysteresis: 0.02% FS Repeatability: 0.01% FS Zero Balance: 1% FS Creep in 20 min: 0.03% FS Operating Temperature: -18 to 66°C (0 to 150°F) Compensated Temperature: -18 to 66°C (0 to 150°F) Thermal Effects: Zero: 0.0027% FS/°C Span: 0.0015% rdg/°C Maximum Load: Safe, 150%; ultimate, 300% Bridge Resistance: 350 Ω nominal Construction: 17-4 PH stainless steel Cable: 6 m (20') 4-conductor shielded 22-gage wire
† Price are shown in RMB.
Note: Each unit comes complete with 5-point NIST-traceable calibration and 59 kO shunt data.
