Drum Level Indicator
LV-110

Drum Level Indicator

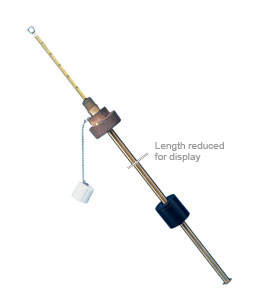

LV-110:Drum Level Indicator
Click for larger image.

• Compatible With Most Liquids and Chemicals
• Models Rated to Maximum 750 PSI
• Drum Level Indicators Require No Electricity

View related products - Level Switches & Transmitters

Click to scroll below to order See Specs PDF View a printer friendly page

The LV-110 Series Drum Level Indicators are compact, self contained liquid level indicators designed for use in 55 gallon drums. A magnet equipped float senses level and readout is obtained by removing the protective cap on the unit and reading the indicator measuring tape. LV-110 units can be used in either horizontal or vertical drums.
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 LV-110 2 Weeks   ¥1,975.00    22" Horizontal; Stem/float: Brass/Buna-N
 LV-111    Consult sales   22" Horizontal; Stem/float 316SS
 LV-112    Consult sales   33" Vertical; Stem/float Brass/Buna-N
 LV-113    Consult sales   33" Vertical; Stem/float 316SS
 LV-115 2 Weeks   ¥3,730.00    33" Vertical; Stem/float PVC
† Price are shown in RMB.

 Note: Comes complete with operator's manual.
  Ordering Example: (1) LV-110 22, ¥1,975.00
