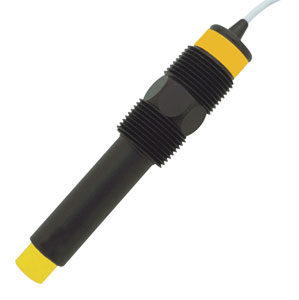

Economical Capacitance Level Switch |
| Model LVC-152-R |
|
 |
|
|
|
|
|
¥
2,935.00
LVC-152-R
|
| • |
Reliable Detection of Conductive, Light to Medium Coating Liquids
|
| • |
Unique Coating Circuit Rejects the Negative Effects of Coating or Scaling Build-up
|
| • |
All Plastic Construction with PP Materials for Corrosive Environments
|
| • |
Probe and Cable Rated IP68 or NEMA 6 for Submersible Operation in Tanks or Sumps
|
| • |
1 AMP SPST Relay Standard
|
| • |
Selectable Normally Open or Normally Closed Output States
|
| • |
Compatible with LVM-50 Series Single Switch Fitting Assemblies
|
View related products - Level Switches & Transmitters
|
| |
|
|
|
 |
The LVC-152-R capacitance level switch is the perfect switch solution
for conductive coating or scaling type liquids. The LVC-152-R is best
applied in grounded vessels which contain water based, light to
medium coating or scaling type liquids including soap, wastewater
and brine solutions. The LVC-152-R capacitance switch detects the
presence of liquid or air by measuring the conductive or dielectric
values which are present in all materials. The guard circuit rejects the
negative effects of coating build-up on the probe by eliminating the
coating signal path between the active and reference electrodes.
As the probe tip becomes immersed in liquid, the capacitance effect
is greatly increased and the switch changes state.
Warning: Do not install sensor within 15.24 cm (6") of any metal
object.
SPECIFICATIONS
Accuracy: ±1 mm (0.04") in water
Repeatability: ±0.5 mm (0.02") in water
Dielectric Range: >20 constants
Conductive Range: >100 micromhos
Supply Voltage: 12 to 36 Vdc
Consumption: 25 mA max.
Relay:
GP: 120 Vac/Vdc @ 1 A
CE: 60 Vac/Vdc @ 1 A
Switch Output: Selectable NO or NC
Temperature Rating: -40 to 90°C (-40 to 194°F)
Pressure Rating: 150 psi @ 25°C (76°F), derated @ 1.667 psi per °C above 25°C (76°F)
Probe Material: Polypropylene
Probe Rating: NEMA 6X (IP68)
Mounting Threads: ¾ NPT
Cable Type: 3 m (10'), 4-wire, 22 gage with ground, shield & PP jacket
Dimension: 12.7 cm L (5.0") x ¾ NPT
Immersion Length: 7 cm (2.6") from bottom of threads to tip of probe
|
|
|
|
|
|
† Price are shown in RMB.
Note: Comes complete with 3 m (10 ft) cable and operator’s manual.
Two extended cable lengths available:
For 7.62 m (25'), add suffix "-25" to model number, add $20 to price.
For 15.24 m (50'), add suffix "-50" to model number, add $40 to price.
Do not install sensor within 15.24 cm (6") of any metal object
(OPTIONS SHOWN IN THIS "NOTE" ABOVE ARE PRICED IN US$)
Ordering Example: (1) LVC-152-R level switch, PP material with SPST 1 AMP Relay, ¥2,935.00
|
|
|
|
|
| |
|
