Low Cost Conductivity Level Switch Systems for Liquids Only |
| LVC Series, LVC500 Series |
|
 |
|
|
Low Cost Conductivity Level Switch Systems for Liquids Only
 |

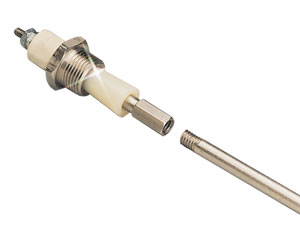

| Click for larger image. |
|
|
|
|
|
|
 |
Series LVC500 electronic level controls should be used whenever a
liquid level needs to be maintained, such as pumping down an industrial
sump, or indicated, such as a holding tank high level alarm. A
system consists of three components; 1) Cut-to-length
threaded electrode rods. 2) Single or multi-electrode holder. 3) Remote
electronic module(s).
The LVC500 Series operates on a simple conductance principle whereby a small electrical current is
passed through the conductive liquid between two electrodes or an electrode and metallic tank wall. For
those applications requiring a separate start and stop point, a single control module, plus two
electrodes and tank reference are required. When several applications or levels are necessary within a
single tank, an electrode is needed for each level (plus tank reference), plus a multi-electrode holder and a
control module for each differential or single level application.
Note:
Always treat hazardous areas with respect! If the electrodes or float switch is located in a
hazardous area an intrinsically safe control module must be used. Intrinsically safe
controls must be installed by experienced personnel familiar with intrinsic safety wiring,
and installation must be in accordance with the National Electrical Code (NEC). The
control must be mounted in a non-hazardous location with the wiring to the level probes or
float switch going into the hazardous atmosphere. Intrinsically safe wiring must be
separated from non-intrinsically safe wiring, and the length of your 14 or 16 gage copper
wire must not exceed the specifications listed in the current installation manual. Consult
your local electrical code inspector for further details.
|
|
|
|
|
|
† Price are shown in RMB.
Note: Comes complete with operator's manual.
Inverse normally used for pump up or low level applications.
For 240 Vac operations, add suffix "-240Vac" to model number, add $40 to price.
(OPTIONS SHOWN IN THIS "NOTE" ABOVE ARE PRICED IN US$)
Ordering Example: (1) LVC-N3-BR Brass Electrode holder, ¥2,535.00,
|
|
|
|
|
| |
|
