- Discontinued ULTRASONIC LEVEL TRANSMITTER AND CONTROLLER |
| LVCN318 Series |
|
 |
|
|

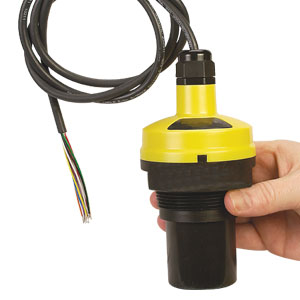

Ultrasonic Level Transmitter and Controller
 |
| Click for larger image. |
|
|
|
|
| • |
Level Detection, Switch and Control Functions Up to 5.5 m (18')
|
| • |
Fast and Easy Configuration Via Free Software Download and USB Adaptor
|
| • |
Narrow 7.62 cm (3") Beam Width and Short 20 cm (8") Dead Band
|
| • |
Four Programmable Relays
|
| • |
PVDF Transducer and 6P Polycarbonate Enclosure
|
| • |
Automatic Temperature Compensation for Accurate Measurement
|
View related products - Level Switches & Transmitters
|
| |
|
|
|
 |
LVCN318 Series has been discontinued. Please see LVU503 series as possible alternative or contact our sales department.
OMEGA’s LVCN318 ultrasonic level
transmitter and controller provides
continuous level measurement up to
5.5 m (18') with a 4 to 20 mA signal
output, and is configured via our free
software via a USB adaptor. The
level sensor has 4 programmable
relays with selectable hysteresis and
fail-safe logic. The embedded level
controller can lower cost by replacing
external control hardware. This
non-contact liquid level sensor is
ideally suited for corrosive, sticky or
dirty liquids, and is widely selected
for day tank, skid, IBC, sump and
process tank level applications.
Specifications
Range: 5.5 m (18')
Accuracy: ±0.2% of range
Resolution: 2 mm (0.079")
Dead Band: 20 cm (8")
Beam Width: 7.62 cm (3")
Configuration: USB PC Windows®
USB 2.0 Memory: Non-volatile. The level sensor is configurable via our free PC software and USB adaptor. The sensors are offered with and without USB connectors. Connectors can be used to configure any compatible level product. Download your free copy at: omega.com/ftp
Supply Voltage: 24 Vdc (loop)
Consumption: 0.5W
Loop Resistance: 400Ù max
Signal Output: 4 to 20 mA, two-wire
Signal Invert: 4 to 20 mA or 20 to 4 mA
Signal Fail-Safe: 4 mA, 20 mA, 21 mA, 22 mA or hold last
Contact Type: (4) SPST relays
Contact Rating: 60 VA, 1A maximum
Contact Fail-Safe: Power loss; hold last
Echo Loss: Open, close or hold last
Hysteresis: Selectable
Process Temperature: -7 to 60°C (20 to 140°F)
Temp Comp: Automatic
Ambient Temperature: -35 to 60°C (-31 to 140°F)
Pressure: Maximum Working Pressure = 2 bar (30 psi)
Enclosure Rating: Type 6P, encapsulated, corrosion resistant and submersible
Encl Material: Polycarbonate
Trans Material: PVDF
Cable Jacket Material: Polyurethane
Cable Type: 9-conductor, shielded
Cable Length: 1.2 m (48")
Process Mount: 2 NPT (2" G optional)
Mount Gasket: FKM
Classification: General purpose
Compliance: CE, RoHS
|
|
|
|
|
|
† Price are shown in RMB.
Note: Comes complete with mounting gasket, and operator’s manual.
Configuration software available free at omega.com/ftp
|
|
|
|
|
| |
|
