Non-Contact Level Controller for Small Tank Applications |
| LVCN414 Series |
|
 |
|
|
|
|
|
¥
4,725.00
LVCN414
|
| • |
Reliable, Non-Contact Replacement for Continuous and Switching Applications
|
| • |
Compact Sensor Optimized for Small Tank Applications
|
| • |
Control/Switch Functions for Pumps and Alarms
|
| • |
PVDF Transducer for Corrosive Liquid Media
|
| • |
Simple Installation and Setup with Available USB Connection and Free Software Download
|
View related products - Level Switches & Transmitters
|
| |
|
|
|
 |

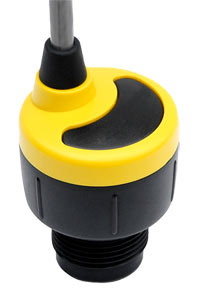

The LVCN414 Series is a
non-contact, ultrasonic level
controller and transmitter that
delivers reliable, cost-effective,
high-performance, small-tank fluid
handling control solutions. The
LVCN414 targets process, control
and chemical feed applications in
small tanks mounted on skids, tools
or machines. The LVCN414 allows
flexibility in applications designed
for system integration or retrofit of
floats, conductance, and pressure
sensors, and is easily configured
through a USB connection and the
Windows XP compatible software download
available free at omega.com/ftp.
The LVCN414 gives
precision and accuracy that allows
for real-time/ anytime measurement,
lowering operational costs and
increasing productivity. Level
indication for process or control
automation applications can be
monitored via local display or
remote PLC. The LVCN414 is a
total small tank level control and
measurement solution.
SPECIFICATIONS
Range: 1.25 m (49.2")
Accuracy: 3 mm (0.125")
Resolution: 0.5 mm (0.019")
Beam Width: 5 cm (2")
Deadband: 5 cm (2")
Supply Voltage: 24 Vdc (loop)
Loop Resistance: 400 Ω max
Consumption: 0.5 W
Signal Output: 4 to 20 mA, 2-wire (when loop powered)
Contact Type: (4) SPST relays 1A
Loop Fail-Safety: 4 mA, 20 mA, 21 mA, 22 mA or hold last
Relay Fail-Safety:
Power Loss: Hold last
Power On: Open, close or hold last
Hysteresis: Selectable
Configuration: Via USB/ PC Windows® software interface and free PC software download.
Temperature Compensation: Automatic over range
Temperature: -35 to 60°C(-31 to 140°F)
Enclosure: NEMA 6P
Enclosure Material: PC/ABS FR
Strain Relief Material: Santoprene
Transducer Material: PVDF
Cable Length: 1.2 m (4')
Cable Jacket Material: PVC
Process Mount: 1 NPT
Mounting Gasket: FKM
Classification: General purpose
|
|
|
|
|
|
† Price are shown in RMB.
Note: Comes complete with operator's manual.
Configuration software for programming available free at omega.com/ftp
Ordering Example: (1) LVCN414 level transmitter with relays, 1 NPT 1.2 m (4') range, ¥4,725.00
|
|
|
|
|
| |
|
