Capacitance Level Switches |
| LVCN4300 Series |
|
 |
|
|
|
|
|
¥
8,765.00

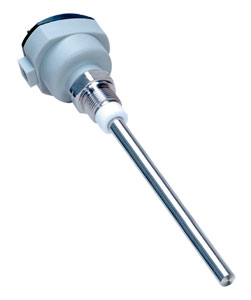

LVCN4321-12
|
| • |
Can Operate at High Temperatures and Pressure
|
| • |
Unaffected by Coating Media or Aggressive Products
|
| • |
Accurate and Reliable Switching
|
| • |
Easy Economical Installation
|
| • |
Rugged Construction
|
| • |
No Moving Parts
|
| • |
Functions on Conductive as Well as Non-Conductive Medias
|
| • |
Wide Range of Applications/Industries (i.e. Water, Oils, Corrosives, etc.)
|
View related products - Level Switches & Transmitters
|
| |
|
|
|
 |
The LVCN4300 Series level switches are flexible, as well as cost
effective, level solutions for a great variety of applications. Rods can
be encased in PTFE tubing as an option.
The wide range of applications for RF level measurement switches
include liquids and paste. To cater to all applications, OMEGA’s
capacitance probes are offered with different designs and features.
Housings must also be compatible with the requirements for
hazardous, wash-down, wet, and/or dusty environments.
Explosion-proof environments may require the housing to be certified.
In addition, the active probe might need to be intrinsically safe or have
an intrinsic safety barrier.
The LVCN4300 series point level switch probe works as a remote
probe and is compatible with the LVCN400 series relay. This
combination allows the electrode to be used in temperatures up to
177°C (350°F). The LVCN4300 is a very compact 316 SS switch.
SPECIFICATIONS
Power Supply for LVCN401: 24 Vdc ±10%
Power Supply for LVCN402: 115 Vac (50/60 Hz)
Power Supply for LVCN403: 230 Vac (50/60 Hz)
Current Consumption: Max 2 VA
Adjustment: Potentiometer switch point
Range of Sensitivity: 0.1 to 5 pF
Output: 5A SPDT Relay (250 Vac max)
Process Connection: 3/4, 1/2, 11/2 NPT, 11/2" Tri-Grip™
(Tri-Clamp® compatible) or 2" flange
LVCN4300: 16 mm (5/8") diameter
Electrode Length: 100 to 1800 mm (0.33 to 6') for water; 100 to 600 mm
(0.33 to 2') for other materials
Enclosure Material: Glass filled nylon standard
Dimensions: 89 W x 64 mm H (31/2 x 21/2")
Aluminum Diecast Temperature Range: -10 to 120°C (-14 to 248°F)
“-HT” Units: 177°C (350°F)
Max Pressure: 290 psi (20 bar)
Level Indication: LED Status on/off
Protection Class for LVCN400: IP40
LVCN4300: PTFE: 177°C (350°F)
Weight:
Sensor: 1 kg (2.2 lb) for 24" L
LVCN400 electronics: Approx. 227 g (0.5 lb)
|
|
|
|
|
|
† Price are shown in RMB.
Note: Comes complete with operator's manual.
Ordering Example: (1) LVCN401 electronics with 115 Vac power, ¥3,430.00, plus (1) LVCN4321-24-PTFE capacitance system with single fixed PTFE tubed rod, 24, ¥11,235.00, ¥3,430.00 + 11,235.00 = $14,665.00
|
|
|
|
|
|
|
|
|
Part Number Builder |
|
|
|
|
|
|
|
|
Option Descriptions
|
|
(1)
|
Process Connection
|
| |
Select
1 for 3/4 NPT thread
2 for 1 NPT thread
3 for 1.5 NPT thread
4 for 1.5 in Tri-Grip
5 for 2 in ANSI flange 15016 316 SS
|
(2)
|
Enclosure
|
| |
Select
1 for glass-filled nylon with 1/2 NPT conduit entry and cable gland
2 for aluminum die cast with 1/2 NPT conduit entry
3 for aluminum die cast with cable gland entry
|
(3)
|
Length
|
| |
Select
L for length in inches-72 in max for water or 24 in. max
|
|
NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
|
| |
|
|
|
|
|
|
| |
|
