ULTRASONIC LEVEL TRANSMITTER

LVU2700 Series

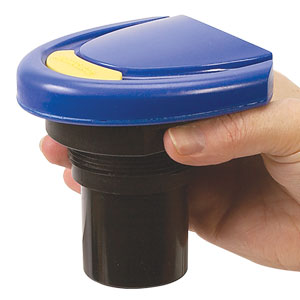

Ultrasonic Level Transmitter

Click for larger image.

^¥ 6,555.00 LVU2710

•	4 Measurement Ranges from 3 to 10 m (9.8 to 32.8')
•	Auto Adaptive Filters Enable Plug and Play Operation
•	Fast and Easy Configuration Via Free Software Download and USB Adaptor
•	Narrow 5 or 7.6 cm (2 or 3") Beam Width and Short 10 or 20 cm (4 or 8") Dead Band
•	PVDF Transducer and NEMA 4X (IP65) Polycarbonate Enclosure
•	Automatic Temperature Compensation for Accurate Measurement
View related products - Level Switches & Transmitters

OMEGA’s LVU2700 ultrasonic level transmitter provides continuous level measurement up to 10 m (32.8') with a 4 to 20 mA signal output, and is configured via free software and a USB adaptor. This non-contact liquid level sensor is ideally suited for corrosive, ultrapure, sticky or dirty liquids, and is broadly selected for bulk storage, day tank, lift stations and process tank level applications.

Specifications
Range
    LVU2710: 10 cm to 3 m (4" to 9.8')
    LVU2718: 20 cm to 5.5 m (8" to 18.0')
    LVU2726: 20 cm to 8 m (8" to 24.6')
    LVU2732: 20 cm to 10 m (8" to 32.8')
Accuracy: ±0.2% of range
Resolution
    LVU2710: 0.5 mm (0.019")
    LVU2718: 1 mm (0.039")
    LVU2726/32: 2 mm (0.079")
Dead Band
    LVU2710: 10 cm (4")
    LVU2718/26/32: 20 cm (8")
Beam Width
    LVU2710: 5 cm (2")
    LVU2718/26/32: 7.6 cm (3")
Configuration: USB PC Windows®
USB 2.0 Memory: Non-volatile. The level sensor is configurable via our free PC software download and USB adaptor. The sensors are offered with and without USB connectors. Connectors can be used to configure any compatible level product. Download your free copy at: omega.com/ftp
Supply Voltage: 24 Vdc (loop)
Consumption: 0.5 W
Loop Resistance: 500 Ω @ 24 Vdc
Signal Output: 4 to 20 mA, two-wire
Signal Invert: 4 to 20 mA or 20 to 4 mA
Signal Fail-Safe: 4 mA, 20 mA, 21 mA, 22 mA or hold last
Process Temp: -20 to 60°C (-4 to 140°F)
Temp Comp: Automatic
Ambient Temp: -35 to 60°C (-31 to 140°F)
Pressure: Maximum Working Pressure = 2 bar (30 psi)
Enclosure Rating: NEMA 4X (IP65)
Enclosure Material: Polycarbonate
Trans Material: PVDF
Cable Jacket Material: Polyurethane
Cable Type: 4-conductor, shielded
Process Mount:
    LVU2710: 1 NPT (1" G optional)
    LVU2718/26/32: 2 NPT (2" G optional)
Mount Gasket: FKM
Classification: General purpose

Order on www.omegaengineering.cn and 5% will be discounted when you checkout.

To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping

Part Number	Availability	Price(RMB)	Description	Qty.

Models with USB Connector

LVU2710	3 Weeks	¥6,555.00	Ultrasonic level transmitter with USB connector, range 3 m (9.8')	qty.

LVU2718	3 Weeks	¥8,040.00	Ultrasonic level transmitter with USB connector, range 5.5 m (18')	qty.

LVU2726	2 Weeks	¥8,775.00	Ultrasonic level transmitter with USB connector, range 8 m (26.2')	qty.

LVU2732	10 Weeks	¥10,455.00	Ultrasonic level transmitter with USB connector, range 10 m (32.8')	qty.


Models without USB Connector

LVU2710-B	10 Weeks	¥6,475.00	Ultrasonic level transmitter, range 3 m (9.8'), (requires purchase of LVCN414-USB)	qty.

LVU2718-B	10 Weeks	¥7,535.00	Ultrasonic level transmitter, range 5.5 m (18'), (requires purchase of LVCN414-USB)	qty.

LVU2726-B	10 Weeks	¥8,710.00	Ultrasonic level transmitter, range 8 m (26.2'), (requires purchase of LVCN414-USB)	qty.

LVU2732-B	10 Weeks	¥9,885.00	Ultrasonic level transmitter, range 10 m (32.8'), (requires purchase of LVCN414-USB)	qty.


Models with "G" Metric Threads Standard

LVU2710-G	10 Weeks	¥6,980.00	Ultrasonic level transmitter with USB connector, range 3 m (9.8'), straight threads	qty.

LVU2718-G	10 Weeks	¥8,095.00	Ultrasonic level transmitter with USB connector, range 5.5 m (18'), straight threads	qty.

LVU2726-G	10 Weeks	¥9,330.00	Ultrasonic level transmitter with USB connector, range 8 m (26.2'), straight threads	qty.

LVU2732-G	10 Weeks	¥10,525.00	Ultrasonic level transmitter with USB connector, range 10 m (32.8'), straight threads	qty.


Models with "G" Metric Threads Standard and without USB Connector

LVU2710-G-B		Consult sales	Ultrasonic level transmitter, range 3 m (9.8'), (requires purchase of LVCN414-USB), straight threads	qty.

LVU2718-G-B	10 Weeks	¥7,595.00	Ultrasonic level transmitter, range 5.5 m (18'), (requires purchase of LVCN414-USB), straight threads	qty.

LVU2726-G-B		Consult sales	Ultrasonic level transmitter, range 8 m (26.2'), (requires purchase of LVCN414-USB), straight threads	qty.

LVU2732-G-B		Consult sales	Ultrasonic level transmitter, range 10 m (32.8'), (requires purchase of LVCN414-USB), straight threads	qty.


Accessories

LVCN414-USB		Consult sales	USB connector (1 required for -B models, sold separately)	qty.


Fittings and Brackets

LVM-31	6 Weeks	¥635.00	1" Side mount bracket	qty.

LVM-30	6 Weeks	¥495.00	2" Side mount bracket	qty.

LVM-30G	6 Weeks	¥495.00	2 G (metric thread) Side mount bracket	qty.

LVU800-2N40	6 Weeks	¥204.00	2 NPT X 1 NPT for Schedule 40	qty.

LVU800-3N40	6 Weeks	¥440.00	3 NPT X 2 NPT for Schedule 40	qty.

LVU800-2N80	2 Weeks	¥485.00	2 NPT X 1 NPT for Schedule 80	qty.

LVU800-3N80	6 Weeks	¥755.00	3 NPT X 2 NPT for Schedule 80	qty.

LVU800-4N80	6 Weeks	¥1,365.00	4 NPT X 2 NPT for Schedule 80	qty.

LVU800-2S40	2 Weeks	¥123.00	2" Socket X 1 NPT for Schedule 40	qty.

LVU800-3S40	6 Weeks	¥178.00	3" Socket X 2 NPT for Schedule 40	qty.

LVU800-4S40	6 Weeks	¥314.00	4" Socket X 2 NPT for Schedule 40	qty.

LVU800-2S80	6 Weeks	¥420.00	2" Socket X 1 NPT for Schedule 80	qty.

LVU800-3S80	6 Weeks	¥1,115.00	3" Socket X 2 NPT for Schedule 80	qty.

LVU800-4S80	2 Weeks	¥1,985.00	4" Socket X 2 NPT for Schedule 80	qty.

LVU800-1B	6 Weeks	¥610.00	1 NPT Bulkhead fitting	qty.

LVU800-2B	2 Weeks	¥935.00	2 NPT Bulkhead fitting	qty.

LVU800-3B	6 Weeks	¥1,670.00	3 NPT Bulkhead fitting	qty.

LVU800-1F	6 Weeks	¥625.00	1 NPT Flange 150# PVC for Schedule 80	qty.

LVU800-2F	6 Weeks	¥890.00	2 NPT Flange 150# PVC for Schedule 80	qty.

LVU800-3F	6 Weeks	¥3,100.00	3 NPT Flange 150# PVC for Schedule 80	qty.

† Price are shown in RMB.

Note: Comes complete with mounting gasket and operator’s manual.

Configuration software for programming available free at omega.com/ftp
