Non-Contact Loop Powered Ultrasonic Level Transmitter
LVU800 Series
1 year warranty CE

Non-Contact Loop Powered Ultrasonic Level Transmitter

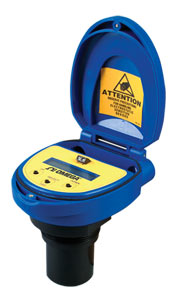

LVU800 Series:Non-Contact Loop Powered Ultrasonic Level Transmitter
Click for larger image.

¥ 9,310.00  LVU816
• Simple, Fast Setup with Pushbutton Calibration and LCD Display
• Four Measurement Ranges Available up to 10 m (32')
• 6-segment LCD Display Indicates Air Gap or Liquid Level (Inch or Centimeter Units)
• 5 cm (2") Minimum Beam Width for Applications with Restricted Space
• NEMA 4X (IP65) Enclosure with Rugged PVDF Transducer
• Fail-Safe Intelligence with Diagnostic Feedback for Easy Troubleshooting

View related products - Level Switches & Transmitters

Click to scroll below to order See Specs PDF Manuals Related Items View a printer friendly page

The LVU800 Series general purpose 2-wire ultrasonic transmitter provides non-contact level measurement up to 10 m (32'), and is ideally suited for challenging ultrapure, corrosive or waste liquids. Pushbutton calibrated, the transmitter is broadly selected for atmospheric bulk storage, day tank and waste sump applications. Media examples include wastewater and sodium hydroxide.

SPECIFICATIONS
Range:
    LVU809: 10 cm to 3 m (4" to 9.8')
    LVU816: 20 cm to 5.5 m(8" to 18')
    LVU826: 20 cm to 8 m(8" to 26.2')
    LVU832: 30 cm to 10 m(12" to 32.8')
Accuracy: ±0.2% of span
Resolution:
    LVU809: 0.5 mm (0.019")
    LVU816/826: 1 mm (0.039")
    LVU832: 2 mm (0.078")
Beam Width:
    LVU809: 5 cm (2") dia.
    LVU816/LVU826/LVU832: 7.6 cm (3") dia.
Deadband:
    LVU809: 10 cm (4")
    LVU816: 20 cm (8")
    LVU826: 20 cm (8")
    LVU832: 30 cm (12")
Display Type: LCD, 6-digit
Display Units: Inch, cm or percent
Display Mode: Air gap or liquid height
Memory: Non-volatile
Supply Voltage: 12 to 28 Vdc
Loop Resistance: 500 O @ 24 Vdc
Signal Output: 4 to 20 mA, 2-wire
Signal Invert: 4 to 20 mA or 20 to 4 mA
Calibration: Push button
Fail-Safety: Selectable 4 mA, 20 mA, 21 mA, 22 mA or hold
Process Temperature: -20 to 60°C (-7 to 140°F)
Temperature Compensation: Automatic
Electronics Temperature:n -40 to 71°C (-40 to 160°F)
Pressure: 30 psi (2 bar) @ 25°C, derated @ 1.667 psi (0.113 bar) per above 25°C
Enclosure Rating: NEMA 4X (IP65)
Enclosure Vent: Watertight membrane
Enclosure Material: PC/ABS FR
Transducer Material: PVDF
Process Mount:
    LVU809: 1 NPT or 1"G
    LVU816/LVU826/LVU832: 2 NPT or 2" G
Mounting Gasket: FKM
Conduit Entrance: Dual, 1/2 NPT
Classification: General purpose CE compliance EN 61326 EMC
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 LVU809 2 Weeks   ¥7,665.00    2-wire transmitter 9.8' range, display, 1 NPT, NEMA 4X
 LVU809-G 10 Weeks   ¥8,205.00    2-wire transmitter 9.8' range, display, 1 G, NEMA 4X
 LVU816 3 Weeks   ¥9,310.00    2-wire transmitter 18' range, display, 2 NPT, NEMA 4X
 LVU816-G 10 Weeks   ¥9,365.00    2-wire transmitter 18' range, display, 2 G, NEMA 4X
 LVU826 2 Weeks   ¥10,475.00    2-wire transmitter 26.2' range, display, 2 NPT, NEMA 4X
 LVU826-G 10 Weeks   ¥10,545.00    2-wire transmitter 26.2' range, display, 2 G, NEMA 4X
 LVU832 10 Weeks   ¥11,645.00    2-wire transmitter 32.8' range, display, 2 NPT, NEMA 4X
 LVU832-G 10 Weeks   ¥11,700.00    2-wire transmitter 32.8' range, display, 2 G, NEMA 4X
 Accessories
 LV-BSRN-1/2 6 Weeks   ¥191.00    Replacement black strain relief nut, 1/2" conduit connector opening
 Fittings
 LVM-30 6 Weeks   ¥495.00    2 NPT side mount bracket
 LVM-30G 6 Weeks   ¥495.00    2 G bracket
 LVM-31 6 Weeks   ¥635.00    1 NPT side mount bracket
 LVU800-2N40 6 Weeks   ¥204.00    2 NPT X 1 NPT for Schedule 40
 LVU800-3N40 6 Weeks   ¥440.00    3 NPT X 2 NPT for Schedule 40
 LVU800-3N80 6 Weeks   ¥755.00    3 NPT X 2 NPT for Schedule 80
 LVU800-4N80 6 Weeks   ¥1,365.00    4 NPT X 2 NPT for Schedule 80
 LVU800-2S40 2 Weeks   ¥123.00    2" Socket X 1 NPT for Schedule 40
 LVU800-3S40 6 Weeks   ¥178.00    3" Socket X 2 NPT for Schedule 40
 LVU800-4S40 6 Weeks   ¥314.00    4" Socket X 2 NPT for Schedule 40
 LVU800-3S80 6 Weeks   ¥1,115.00    3" Socket X 2 NPT for Schedule 80
 LVU800-4S80 2 Weeks   ¥1,985.00    4" Socket X 2 NPT for Schedule 80
 LVU800-2B 2 Weeks   ¥935.00    2 NPT Bulkhead Fitting
† Price are shown in RMB.

 Note: Comes complete with operator's manual.


  Ordering Example: (1) LVU816 2-wire transmitter 16.4' range, programming display, 2 NPT, 2-wire transmitter 16.4' range, programming display, 2 NPT, NEMA 4X, ¥9,310.00
