Fast Acting 10x38 Midget Fuses, 600 VAC & 250 VAC Class M
MCL 600 VAC & MOL 250 VAC Style Fuses

MCL 600 VAC & MOL 250 VAC Style Fuses:Fast Acting 10x38 Midget Fuses, 600 VAC & 250 VAC Class M

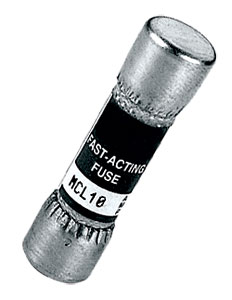

Click for larger image.

¥ 175.00  MCL10
• Compact Dimensions
• High Interrupting Rating (600V)
• Fast-Acting Design Responds Quickly to Both Overloads and Short-Circuit Current (600V)
• Economical Laminated Paper Tube Design (250V)

View related products - Power Products

Click to scroll below to order See Specs PDF View a printer friendly page

Fast Acting 600V Midget Fuse
A fast-acting, high-interrupting capacity, current-limiting type fuse. The MCL style fuse feature provides an excellent choice for applications such as: street lighting holders, HID lighting, control circuits, electronic equipment protection.

SPECIFICATIONS
Dimensions: 13/32" ferrule, 1.5" length
Weight: Approx 0.2 lbs
Voltage Rating: MCL - 600 Vac
Ampere Rating: .1 to 50 A
Interrupting Rating: 100 K RMS amps
Agency Approvals: (0.1 to 30) UL Listed to 198G, File E162443; (0.1 to 30) CSA Cert. C22.2 Part 59.2, LR700489

Fast Acting 250V Midget Fuse

The MOL is an economical solution for over current protection. The MOL style fuse feature provides an excellent choice for applications such as: supplemental protection for noninductive control and lighting circuits.

SPECIFICATIONS
Dimensions: 13/32" ferrule, 1.5" length
Weight: Approx 0.2 lbs
Voltage Rating: MOL - 250 Vac
Ampere Rating: 0.5 to 30 A
Interrupting Rating: 10 K RMS amps
Agency Approvals: (0.5 - 30) UL Listed to 198G, File E162443; (0.5 - 30) CSA Cert. C22.2 Part 59.2, LR700489
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 Fast Acting 600V Midget Class Fuses
 MCL.5 2 Weeks   ¥185.00    0.5 Amp Rating
 MCL1 6 Weeks   ¥175.00    1 Amp Rating
 MCL1.5 6 Weeks   ¥187.00    1.5 Amp Rating
 MCL2 2 Weeks   ¥175.00    2 Amp Rating
 MCL2.5 2 Weeks   ¥215.00    2.5 Amp Rating
 MCL3 6 Weeks   ¥175.00    3 Amp Rating
 MCL3.5 6 Weeks   ¥224.00    3.5 Amp Rating
 MCL4 2 Weeks   ¥177.00    4 Amp Rating
 MCL5 6 Weeks   ¥175.00    5 Amp Rating
 MCL6 2 Weeks   ¥172.00    6 Amp Rating
 MCL8 6 Weeks   ¥177.00    8 Amp Rating
 MCL10 6 Weeks   ¥175.00    10 Amp Rating
 MCL12 6 Weeks   ¥202.00    12 Amp Rating
 MCL15 6 Weeks   ¥175.00    15 Amp Rating
 MCL20 6 Weeks   ¥175.00    20 Amp Rating
 MCL25 2 Weeks   ¥166.00    25 Amp Rating
 MCL30 6 Weeks   ¥166.00    30 Amp Rating
 MCL35 2 Weeks   ¥223.00    35 Amp Rating
 MCL40 2 Weeks   ¥200.00    40 Amp Rating
 MCL50 2 Weeks   ¥226.00    50 Amp Rating
 Fast Acting 250V Midget Class Fuses
 MOL.5 2 Weeks   ¥55.00    0.5 Amp Rating
 MOL1 2 Weeks   ¥44.00    1 Amp Rating
 MOL1.5 6 Weeks   ¥55.00    1.5 Amp Rating
 MOL2 2 Weeks   ¥44.00    2 Amp Rating
 MOL2.5 6 Weeks   ¥55.00    2.5 Amp Rating
 MOL3 2 Weeks   ¥44.00    3 Amp Rating
 MOL4 2 Weeks   ¥55.00    Amp Rating4
 MOL5 6 Weeks   ¥44.00    5 Amp Rating
 MOL6 10 Weeks   ¥44.00    6 Amp Rating
 MOL8 2 Weeks   ¥44.50    8 Amp Rating
 MOL10 6 Weeks   ¥39.00    10 Amp Rating
 MOL15 6 Weeks   ¥39.50    15 Amp Rating
 MOL20 6 Weeks   ¥46.00    20 Amp Rating
 MOL25 10 Weeks   ¥48.50    25 Amp Rating
 MOL30 2 Weeks   ¥38.50    30 Amp Rating
† Price are shown in RMB.

 Note: Comes with instruction sheet.
