General Purpose Class M (10x38 Midget) Time Delay Fuses, 250 VAC & 500 Vac
MEN/MEQ Style Fuses

MEN/MEQ Style Fuses:General Purpose Class M (10x38 Midget) Time Delay Fuses, 250 VAC & 500 Vac

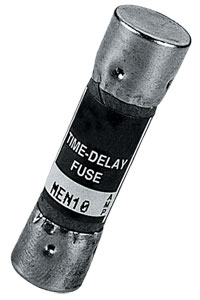

Click for larger image.

¥ 71.00  MEN10
• Compact Dimensions
• Fiber Tube Construction
• Time-Delay Allows Harmless Inductive Surges to Pass Without Needless Fuse Opening (500V)
• Dual-Element Construction Allows Harmless Inductive Surges to Pass Without Opening (250V)

View related products - Power Products

Click to scroll below to order See Specs PDF View a printer friendly page

Time-Delay 500V Fuses, Class M
The MEN midget class time delay fuse is ideal for the many applications including supplemental protection of small motors, transformers, solenoids, and other high inrush power electronic circuits.
SPECIFICATIONS
Dimensions: 13/32" ferrule, 1.5" length
Weight: Approx 0.2 lbs
Voltage Rating: MEN - 250 Vac
Ampere Rating: 0.5 to 30 A
Interrupting Rating: 10K RMS amps @ 125 V
Agency Approvals: UL Listed to 198G, File E162443; CSA Cert. C22.2 Part 59.2, LR700489

Time-Delay 250V Fuses, Class M
The MEQ midget class time delay fuse is ideal for the many applications including supplemental protection of transformers, solenoids, and other high inrush circuits.

SPECIFICATIONS
Dimensions: 13/32" ferrule, 1.5" length
Weight: Approx 0.2 lbs
Voltage Rating: MEQ - 500 Vac
Ampere Rating: 0.1 to 30 A
Interrupting Rating: 10 K RMS amps
Agency Approvals: (0.1 - 30) UL Listed to 198G, File E162443; (0.1 - 30) CSA Cert. C22.2 Part 59.2,LR700489
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 Time-Delay 250V Midget Class Fuses
 MEN.5 2 Weeks   ¥87.00    0.5 Amp Rating
 MEN.6 6 Weeks   ¥87.00    0.6 Amp Rating
 MEN1 6 Weeks   ¥79.00    1 Amp Rating
 MEN1.4 6 Weeks   ¥101.00    1.4 Amp Rating
 MEN1.5 2 Weeks   ¥89.00    1.5 Amp Rating
 MEN2 6 Weeks   ¥74.00    2 Amp Rating
 MEN2.5 6 Weeks   ¥83.00    2.5 Amp Rating
 MEN3 2 Weeks   ¥77.00    3 Amp Rating
 MEN3.5 6 Weeks   ¥77.00    3.5 Amp Rating
 MEN4 6 Weeks   ¥77.00    4 Amp Rating
 MEN5 6 Weeks   ¥74.00    5 Amp Rating
 MEN6 6 Weeks   ¥83.00    6 Amp Rating
 MEN7 2 Weeks   ¥77.00    7 Amp Rating
 MEN8 2 Weeks   ¥77.00    8 Amp Rating
 MEN10 2 Weeks   ¥71.00    10 Amp Rating
 MEN12 2 Weeks   ¥83.00    12 Amp Rating
 MEN15 6 Weeks   ¥74.00    15 Amp Rating
 MEN20 2 Weeks   ¥77.00    20 Amp Rating
 MEN25 2 Weeks   ¥87.00    25 Amp Rating
 MEN30 6 Weeks   ¥73.00    30 Amp Rating
 Time-Delay 500V Midget Class Fuses
 MEQ.25 2 Weeks   ¥239.00    0.25 Amp Rating
 MEQ.5 6 Weeks   ¥223.00    0.5 Amp Rating
 MEQ1 6 Weeks   ¥211.00    1 Amp Rating
 MEQ1.5 6 Weeks   ¥223.00    1.5 Amp Rating
 MEQ2 2 Weeks   ¥211.00    2 Amp Rating
 MEQ2.5 6 Weeks   ¥223.00    2.5 Amp Rating
 MEQ3 6 Weeks   ¥211.00    3 Amp Rating
 MEQ3.5 6 Weeks   ¥239.00    3.5 Amp Rating
 MEQ4 6 Weeks   ¥211.00    4 Amp Rating
 MEQ4.5 6 Weeks   ¥256.00    4.5 Amp Rating
 MEQ5 2 Weeks   ¥211.00    5 Amp Rating
 MEQ6 6 Weeks   ¥211.00    6 Amp Rating
 MEQ7 6 Weeks   ¥223.00    7 Amp Rating
 MEQ8 6 Weeks   ¥211.00    8 Amp Rating
 MEQ10 2 Weeks   ¥211.00    10 Amp Rating
 MEQ12 6 Weeks   ¥211.00    12 Amp Rating
 MEQ15 2 Weeks   ¥211.00    15 Amp Rating
 MEQ20 6 Weeks   ¥211.00    20 Amp Rating
 MEQ25 2 Weeks   ¥211.00    25 Amp Rating
 MEQ30 6 Weeks   ¥211.00    30 Amp Rating
† Price are shown in RMB.
