Electric Motor Heaters
MH Series
1 year warranty

Electric Motor Heaters Flexible Heaters
MH Series:Electric Motor Heaters

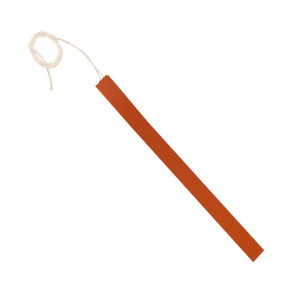

Click for larger image.

• Control Moisture Build-Up on Electric Motor Windings
• 120 or 240 Volts
• 25 to 250 Watts
• 5 Watts/Inch²
• Available in sizes from 1 x 5" to 2 x 25"
• Minimum Ambient Temperature -70 deg F

View related products - Flexible Heaters

Click to scroll below to order See Specs PDF View a printer friendly page

Motor Heaters (MH series heaters) are designed to control moisture build-up on the electric motor windings. Condensation build-up in the motor can result in premature failure of the electric motor. Moisture condensation occurs when moist air comes in contact with the cold metal surface. Over a period of time the moisture deteriorates the electric windings in the motor. Flexible motor heaters provide heat to the electrical windings preventing moisture to collect in the motor.

MH series heater also benefits electrical motors by ensuring warm start-ups, extended bearing life and adds freeze protection to electrical motors.
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 MH-105-120    Consult sales   1.00 x 5.00" 25 Watts 120 Volts 0.21 Amps
 MH-105-240    Consult sales   1.00 x 5.00" 25 Watts 240 Volts 0.10 Amps
 MH-110-120    Consult sales   1.00 x 10.00" 50 Watts 120 Volts 0.42 Amps
 MH-110-240    Consult sales   1.00 x 10.00" 50 Watts 240 Volts 0.21 Amps
 MH-115-120    Consult sales   1.00 x 15.00" 75 Watts 120 Volts 0.63 Amps
 MH-115-240    Consult sales   1.00 x 15.00" 75 Watts 240 Volts 0.31 Amps
 MH-120-120    Consult sales   1.00 x 20.00" 100 Watts 120 Volts 0.83 Amps
 MH-120-240    Consult sales   1.00 x 20.00" 100 Watts 240 Volts 0.42 Amps
 MH-125-120    Consult sales   1.00 x 25.00" 125 Watts 120 Volts 1.04 Amps
 MH-125-240    Consult sales   1.00 x 25.00" 125 Watts 240 Volts 0.52 Amps
 MH-215-120    Consult sales   2.00 x 15.00" 150 Watts 120 Volts 1.25 Amps
 MH-215-240    Consult sales   2.00 x 15.00" 150 Watts 240 Volts 0.63 Amps
 MH-220-120    Consult sales   2.00 x 20.00" 200 Watts 120 Volts 1.67 Amps
 MH-220-240    Consult sales   2.00 x 20.00" 200 Watts 240 Volts 0.83 Amps
 MH-225-120    Consult sales   2.00 x 25.00" 250 Watts 120 Volts 2.08 Amps
 MH-225-240    Consult sales   2.00 x 25.00" 250 Watts 240 Volts 1.05 Amps
† Price are shown in RMB.

 Note: Comes complete with termination 24" PTFE lead wires
