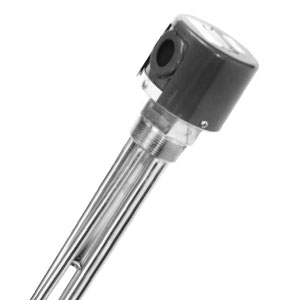

Clean Water 1 or 3 Phase Immersion Heater— 2½" NPT Fitting
MT-3 Series

Immersion Heater
MT-3 Series:Clean Water 1 or 3 Phase Immersion Heater— 2½
Click for larger image.

¥ 4,620.00  MT-330A/240V/3P
• Rugged, Heavy Duty Construction
• Models Available with Explosion Resistant Enclosure
• 0.475" Diameter Copper Sheath, Ideal for pH 6 to pH 8 Liquids
• 3 to 18 kw
• 120, 208, 240 and 480 Vac 1 and 3 Phase Power

View related products - Immersion Heaters

Click to scroll below to order See Specs PDF View a printer friendly page

Please Note: This immersion heater should be used with an approved temperature control device to assure safe operation. See Section P for our selection of process controllers. Not intended for use in hazardous areas.
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 MT-330E2/120V 7 Weeks   ¥7,610.00    120 Vac, 3 kW, E2 enclosure
 MT-330A/240V/3P 7 Weeks   ¥4,620.00    240 Vac, 3 kW, 3 phase, 51 W/in 3 heating elements, Dim B inches (cm) 73/8 (19)
 MT-330A/480V/3P 7 Weeks   ¥4,620.00    480 Vac, 3 kW, 3 phase, 51 W/in 3 heating elements, Dim B inches (cm) 73/8 (19)
 MT-390A/208V 7 Weeks   ¥8,565.00    208 Vac, 9 kW, single phase
† Price are shown in RMB.

 Ordering Example: (1) MT-330A/240V/3P a 3kW heater powered by 1 phase 240VAC, ¥4,620.00
   Part Number Builder
(1) (2) (3) (4)
M
M
T
T
-
-
 		3
3
/
/
Qty:
Option Descriptions
(1) Wattage Rating
  Select
30 for 3 kW
37 for 3.75 kW
45 for 4.5 kW
60 for 6 kW
75 for 7.5 kW
90 for 9 kW
120 for 12 kW
150 for 15 kW
180 for 18kW
(2) Enclosure style
  Select
A for General Purpose
E2 for Explosion Resistant Moisture Tight
(3) Voltage
  Select
120V for 120 Vac
208V for 208 Vac
240V for 240 Vac
480V for 480 Vac
(4) Phase
  Select
Nothing(leave field blank) for 1 Phase
/3P for 3 Phase
 NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
