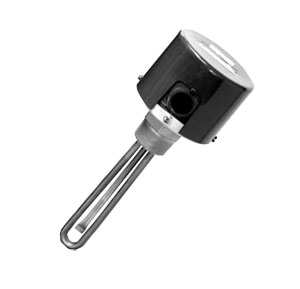

The MT-1 series immersion heater is ideally suited for clean water requirements.
Models are available with a general purpose terminal enclosure1 or a rugged
moisture resistant explosion resistant terminal enclosure.
Please Note: This immersion heater should be used with an approved temperature
control device to assure safe operation. See Section P for our complete selection
of process controllers.
CAUTION AND WARNING!
Fire and electrical shock may result if products are used improperly
or installed or used by non-qualified personnel. See inside back
cover for additional warning.
MT-1 Series
E1 General Purpose Encl.1 Model No.
E2 Explos. Res./ Moist Res Encl.2 Model No.
kW
Phase
W/in2
No. Elem.
Dim. B in (cm)
MT-160A/*
MT-160E2/*
0.6
1
53
1
6 1/8 (16)
MT-175A/*
MT-175E2/*
0.75
1
65
1
6 1/8 (16)
MT-110A/*
MT-110E2/*
1
1
86
1
6 1/8 (16)
MT-110-3A/*
MT-110-3E2/*
1
1
43
2
6 1/8 (16)
MT-112A/*
MT-112E2/*
1.2
1
53
2
6 1/8 (16)
MT-115A/*
MT-115E2/*
1.5
1
65
2
6 1/8 (16)
MT-120A/*
MT-120E2/*
2
1
86
2
6 1/8 (16)
/* Designate voltage, insert 120 for 120 VAC or 240 for 240 VAC. Higher wattages available - contact OMEGALUX.
1. Heaters with General Purpose and Moisture Resistant Enclosures are UL Listed and CSA Certified.
2. Heaters with Explosion Resistant Enclosures are CSA NRTL/C certified and are not intended for use in hazardous areas.
† Price are shown in RMB.
Part Number Builder
Option Descriptions
(1)
kW
Select 60 for 0.6 kW 75 for 0.75 kW 10 for 1 kW 10-3 for 1 kW (MT-110-3A & MT-110-3E2 only) 12 for 1.2 kW 15 for 1.5 kW 20 for 2 kW
(2)
Enclosure
Select A for General Purpose Enclosure E2 for E2 Moisture Tight Explosion Resistant Enclosure
(3)
Voltage
Select 120V for 120 Vac 240V for 240 Vac
NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
Keywords:Clean Water Immersion Heater 1¼" NPT Fitting
