UL Listed and Nema 1 Rated Clean Water Immersion 2" NPT

MT-2 Series

Water Heater

MT-2 Series:UL Listed and Nema 1 Rated Clean Water Immersion 2

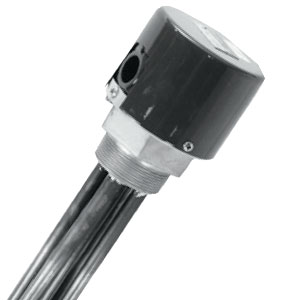

Click for larger image.

^¥ 3,310.00 MT-215A/120V

•	Rugged General Purpose Models-UL Listed and NEMA-1 Rated
•	Optional Moisture Tight/ Explosion Resistant Enclosure Available
•	Ideal for pH 6 to pH 8 Clean Liquids
•	1.5 and 15 kW
•	120, 208, 240, 280, and 480 Volts
View related products - Immersion Heaters

The OMEGALUX™ MT-2 Series utilizes a copper sheath ideal for clean liquids within the pH6 to 8 pH range.

Please Note: This immersion heater should be used with an approved temperature control device to assure safe operation. See section P for our selection of process controllers.

CAUTION AND WARNING!
Fire and electrical shock may result if products are used improperly or installed or used by non-qualified personnel. See inside back cover for additional warning.

kW	W/in2	No. Htg Elem.	Dim. B in (cm)	E-1 Gen. Purpose Enclosure¹ Model No.	Wt. Ib. (kg)	E2 Explos. Res/Moist. Tight Encl.² Model No.	Wt. Ib. (kg)
1.5	48	1	12 (30)	MT-215A/*	3 (1)	MT-215E2/*	6 (3)
2	48	1	18 (46)	MT-220A/*	3 (1)	MT-220E2/*	6 (3)
2.5	51	2	8 (20)	MT-220-3A/*	3 (1)	MT-220-3E2/*	6 (3)
3	48	2	9 1/2 (24)	MT-225A/*	3 (1)	MT-225E2/*	6 (3)
4	48	2	12 (30)	MT-230A/*	4 (2)	MT-230E2/*	7 (3)
5	48	2	18 (46)	MT-240A/*	4 (2)	MT-240E2/*	7 (3)
6	53	2	19 13/16 (49)	MT-250A/*	5 (2)	MT-250E2/*	8 (4)
6	47	2	25 1/8(64)	MT-260A/240	5 (2)	MT-260E2/240	8 (4)
7	47	2	25 1/8 (64)	MT-260A/480	5 (2)	MT-260E2/480	8 (4)
7	49	2	28 (71)	MT-270A/240	6 (3)	MT-270E2/240	9 (5)
10	49	2	40 1/2 (103)	MT-270A/480	6 (3)	MT-270E2/480	9 (5)
12	46	2	48 (122)	MT-2100A/*	7 (3)	MT-2100E2/*	10 (5)
12	46	2	48 (122)	MT-2120A/**†	8 (4)	MT-2120E2/**†	11 (5)

/* Designates Voltage; insert 120 for 120 VAC, 208 for 208 VAC, 240 for 240 VAC, or 280 for 280 VAC
/**Designates Voltage; 208 for 208 VAC, 240 for 240 VAC,or 480 for 480 VAC
Those model numbers already containing 240 or 480 are only available in that voltage.
1 Heaters with General Purpose and Moisture Resistant Enclosures are UL Listed and CSA Certified except model with † (MT-2120A/ 208 & 240 Vac, exceeds 48 Amps.)
2 Heaters with Explosion Resistant Enclosures are CSA NRTL/C certified and are not intended for use in hazardous areas, except model with † (MT-2120E2/ 208 & 240 Vac, exceeds 48 Amps).

Order on www.omegaengineering.cn and 5% will be discounted when you checkout.

To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping

Part Number	Availability	Price(RMB)	Description	Qty.

Example part numbers are shown below. For additional configurations see the Part Number Builder below this table.

MT-215A/120V	7 Weeks	¥3,310.00	Heater, 1.5 kW, 120 V	qty.

MT-250A/120V	7 Weeks	¥5,560.00	Heater, 6 kW, 120 V	qty.

MT-250A/240V	6 Weeks	¥5,560.00	Heater, 6 kW, 240 V	qty.

† Price are shown in RMB.

Part Number Builder

	(1)	(2)		(3)
M M T T - - 2 2			/ /
Qty:

Option Descriptions

(1)

Code in Part Number

Select
15 for code 15
20 for code 20
20-3 for code 20-3
25 for code 25
30 for code 30
40 for code 40
50 for code 50
60 for code 60
70 for code 70
100 for code 100
120 for code 120

(2)

Code in Part Number

Select
A for code A
E2 for code E2

(3)

Voltage

Select
120V for 120 V
208V for 208 V
240V for 240 V
480V for 480 V

NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
