MTI-2 Series

Industrial Water Immersion Heater

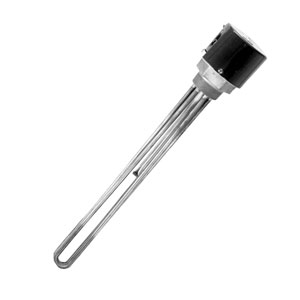

MTI-2 Series:Reliable Solution Water Type Immersion Heater —2

Click for larger image.

^¥ 8,770.00 MTI-215A/120V

•	Durable Incoloy Sheath for Superior Corrosion Protection
•	2" NPT Stainless Steel Screw Plug
•	120, 240, 480 V, 1 Phase Power
•	General Purpose-UL Listed Enclosure or Moisture Resistant/Explosion Resistant Enclosure
•	1.5 to 15kW
View related products - Immersion Heaters

CAUTION AND WARNING!
Fire and electrical shock may result if products are used improperly or installed or used by non-qualified personnel. See inside back cover for additional warnings.

kW	Phase	W/in2	No. Htg. Elem.	Dim. B in (cm)	E1 General Purpose Enclosure¹		E2 Moisture Res/Explos. Res.²
kW	Phase	W/in2	No. Htg. Elem.	Dim. B in (cm)	Model No.	Wt. Ib (kg)	Model No.	Wt. Ib (kg)
1.5	1	48	1	11 7/16 (19)	MTI-215A/*	3 (1)	MTI-215E2/*	6 (3)
2	1	48	1	17 1/2 (44)	MTI-220A/*	4 (2)	MTI-220E2/*	7 (3)
2	1	51	2	7 7/16 (19)	MTI-220A-3A/*	4 (2)	MTI-220-3E2/*	7 (3)
2.5	1	52	2	8 1/2 (22)	MTI-225A/*	4 (2)	MTI-225E2/*	7 (3)
3	1	48	2	11 7/16 (29)	MTI-230A/*	5 (2)	MTI-230E2/*	8 (4)
4	1	48	2	17 1/2 (44)	MTI-240A/*	5 (2)	MTI-240E2/*	8 (4)
5	1	47	2	19 1/4 (48)	MTI-250A/*	5 (2)	MTI-250E2/*	8 (4)
6	1	47	2	24 19/32(62)	MTI-260A/**	5 (2)	MTI-260E2/**	8 (4)
7	1	49	2	27 1/2 (70)	MTI-270A/**	6 (3)	MTI-270E2/**	9 (4)
10	1	46	2	40 1/32 (102)	MTI-2100A/**	8 (4)	MTI-2100E2/**	11 (5)
12	1	46	2	47 9/16 (121)	†MTI-2120A/**	8 (4)	†MTI-2120E2/**	11 (5)
15	1	50	2	53 19/32 (136)	†MTI-2150A/**	8 (4)	†MTI-2150E2/**	11 (5)

/*Insert 120V for 120 Vac, 240V for 240 Vac, 480V for 480 Vac.
/**Insert 240V for 240 Vac, 480V for 480 Vac.
1 Heaters with General Purpose Enclosures are UL Listed and CSA Certified except models with † (exceeds 48 amps).
2 Heaters with Moisture Resistant/Explosion Resistant Enclosures are CSA NRTL/C certified and are not intended for use in hazardous areas. Except models with † (exceeds 48 amps).

NOTE: When using the "Part Number Builder' not all combinations may be valid, check spec sheet
and table above for valid combinations.

Order on www.omegaengineering.cn and 5% will be discounted when you checkout.

To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping

Part Number	Availability	Price(RMB)	Description	Qty.

Example part numbers are shown below. For additional configurations see the Part Number Builder below this table.

MTI-215A/120V	7 Weeks	¥8,770.00	Heater, 1.5 kW, 120 V, general purpose enclosure	qty.

MTI-260A/240V	7 Weeks	¥14,530.00	Heater, 6kW, 240V, general purpose enclosure	qty.

MTI-225A/240V	7 Weeks	¥8,770.00	Heater, 2.5 kW, 240 V, general purpose enclosure	qty.

† Price are shown in RMB.

Part Number Builder

Option Descriptions

(1)

Wattage

Select
15 for 1.5 kW
20 for 2 kW
25 for 2.5 kW
30 for 3 kW
40 for 4 kW
50 for 5 kW
60 for 6 kW
70 for 7 kW
100 for 10 kW
120 for 12 kW
150 for 15 kW

(2)

Enclosures

Select
A for General Purpose Enclosures
E2 for Moisture Resistant/Explosion

(3)

Number of Heating Elements

Select
Nothing(leave field blank) for All models except MTI-220A-3A
-3A for 2 Heating Elements (for MTI-220A-3A Only)

(4)

Voltage

Select
120V for 120 Vac (Only available for models with kW less than 6)
240V for 240 Vac
480V for 480 Vac

NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
