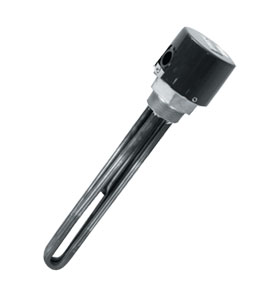

Please Note: This immersion heater should be used with an approved temperature control device to assure safe operation. See Section P for our selection of process controllers.
SPECIFICATIONS Wattage: 2 to 6 kW Power: 240 and 480V, 1 phase Watt Density: 15 W/in² Sheath: 0.475" diameter Screw Plug: 2" NPT steel Enclosure: E1 General Purpose, NEMA-1 rated1, or E2 moisture resistant/explosion resistant enclosure.2
† Price are shown in RMB.
Note: †Caution: Explosion resistant type E2 construction refers to heater design features which provide explosion resisting containment of electrical wiring according to National Electric Code. Abnormal application or use of heaters which in excessive temperatures can create hazardous conditions which can lead to fire. Not intended for use in hazardous areas. 1 Heaters with general purpose enclosures are UL listed and CSA certified. 2 Heaters with moisture-resistant/explosion-resistant enclosures are CSA NRTL/C certified. * For dimensional information, please click on download under related links below.
Part Number Builder
Option Descriptions
(1)
Watts and Watt density
Select 20 for 2 kW 26 for 2.66 kW 33 for 3.33 kW 40 for 4 kW 50 for 5 kW 60 for 6 kW
(2)
Enclosure
Select Nothing(leave field blank) for General Purpose Enclosure E2 for Moisture Resistant/Explosion Resistant Enclosure
(3)
Voltage Rating
Select 240V for 240 Vac 208V for 208 Vac 480V for 480 Vac
NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
