High Temperature Strip Heaters
NSA Series

High Temperature Strip Heaters

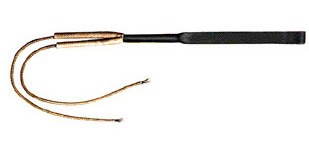

NSA Series:High Temperature Strip Heaters
Click for larger image.

¥ 1,065.00  NSA-711/120V
• Rugged, Reliable, Premium Quality
• 125 to 400 Watts
• Seamless Construction
• ½" (1.27cm) Slim Design for Space Restricted Applications

View related products - Strip Heaters

Click to scroll below to order See Specs PDF View a printer friendly page

The NSA series high temperature strip heater features a slim ½" (1.27 cm) width design, ideal for heat applications where space is restricted. The maximum temperature rating is 1500°F with Incoloy sheath material. Applications include heating of large tanks, vats and heating ducts while clamped to the surface.

FEATURES
3 /16 " (0.5 cm) thick x ½" (1.27 cm) wide mini-size construction similar to NS type. The heater design, materials and construction give long life for given power densities. The Incoloy sheath encloses nickel-chromium resistance wire embedded in a densely compacted refractory material selected for dielectric insulation value and good heat conduction to the sheath. The small cross-section is often an advantage where space is a factor.

SPECIFICATIONS
Sheath Material: Incoloy
Max. Sheath Temp.: 1500°F
Power: 120 Vac or 240 Vac

          CAUTION AND WARNING
Fire and electrical shock may result if products are used improperly or installed or used by non-qualified personnel. See inside back cover for additional warnings.



Model No. Dimension-Inches (cm)
Heated Length Watts W/In2† Volts Wt.
Ib.(kg)
A B C
NSA-7117 1/16 (18)3 1/16 (8)5 5/16 (13)12532120.20 (.09)
NSA-101310 11/16 (27)6 11/16 (17)8 5/16 (21)30020120.28 (.12)
NSA-112311 1/8 (28)7 1/8 (18)9 3/8 (24)35022240.38 (.17)
NSA-142213 3/4 (35)9 3/4 (24)12 (30)20011240.47(.21)
NSA-141214 3/16 (36)10 3/16 (26)12 9/16 (32)2007120.49 (.45)
NSA-162416 1/4 (41)12 1/4 (31)14 1/2 (37)40019240.56 (.25)
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 NSA-711/120V 8 Weeks   ¥1,065.00    125 Watt, 120 Volt, Seamless Strip Heater
 NSA-1013/120V 8 Weeks   ¥1,305.00    300 Watt, 120 Volt, Seamless Strip Heater
 NSA-1412/120V 8 Weeks   ¥1,190.00    200 Watt, 120 Volt, Seamless Strip Heater
 NSA-1422/240V 8 Weeks   ¥1,255.00    200 Watt, 240 Volt, Seamless Strip Heater
 NSA-1123/240V 8 Weeks   ¥1,110.00    350 Watt, 240 Volt, Seamless Strip Heater
 NSA-1624/240V 8 Weeks   ¥1,215.00    400 Watt, 240 Volt, Seamless Strip Heater
† Price are shown in RMB.

 Note: To determine maximum allowable watt density, see Figures C-8 or C-9.
  Ordering Example: (1) NSA-711/120V High temperature strip heater, 120 Vac, ¥1,065.00
