Light Weight Oil Applications

NWHOA Series

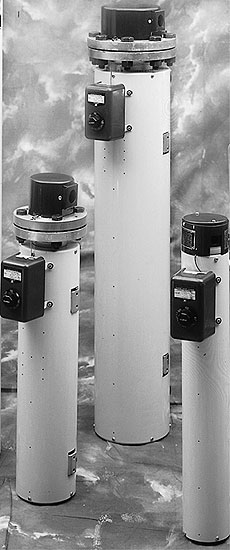

Light Weight Oil Circulation Heater

NWHOA Series:Light Weight Oil Applications

Click for larger image.

•	Oval Flange Design
•	2" Carbon Steel Pipe Body, 150 Lb Construction
•	1.5 - 2.5 kW
•	120, 240 and 480V, Single Phase
•	General Purpose Terminal Enclosure
•	Two 0.475" Dia. Steel Sheath Elements (24 - 26 W/In 2 )
•	Side Mounted AR Thermostat (200 - 550°F)
•	UL, CSA and Other Third Party Approval, Listing or Certification Available
View related products - Circulation Heaters

APPLICATIONS
Light Weight Oil
Low-cost solution to heating lubricating or cutting oils in remote applications.

FEATURES
Terminal Enclosure:
E1 General Purpose is standard.
Elements:
Two steel sheath elements.
Flange:
Oval (manifold) heater flange.
Vessel:
Pipe body and nozzles are ASTM A53B carbon steel pipe. The end disk is ASTM A516 Grade 70 carbon steel plate. Provided with thermal insulation and painted sheet metal jacket.
Wiring:
Convenient field wiring terminals are provided for easy installation.
Controls:
Stock and assembly stock heaters come equipped with side mounted mechanical AR thermostat.

kW	Volts	Ckt & Phase	Dimensions (In.)			Model No.	Wt. (Lbs.)
kW	Volts	Ckt & Phase	A	B	C	Model No.	Wt. (Lbs.)
1.5	120	1-1	23 3/16	15	—	NWHOA-02-01P5-E1/120	20
1.5	240	1-1	23 3/16	15	—	NWHOA-02-01P5-E1/240	20
1.5	480	1-1	23 3/16	15	—	NWHOA-02-01P5-E1/480	20
2.5	240	1-1	31 3/16	23	—	NWHOA-02-02P5-E1/240	27
2.5	480	1-1	31 3/16	23	—	NWHOA-02-02P5-E1/480	27

Order on www.omegaengineering.cn and 5% will be discounted when you checkout.

To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping

Part Number	Availability	Price(RMB)	Description	Qty.
NWHOA-02-02P5-E1/240		Consult sales	Heater, 2.5 kW, 240 V, 1 phase	qty.

† Price are shown in RMB.
